  Page number:  TF-9NR-212
DRUM, Reverse Brake
47487 parts in stock comprising 18299 unique part numbers from 55937 numbers listed. (11/14/2025)
Style Color
Code		 OA/Thick OD/Deep ID/Wide Our Part Number Price Picture
Tooth Counts ID Marks
Year Miscellaneous Info
Years   Part Info Number
Call 877-771-3372 for current price & availability ( 8am - 8pm Pacific Time )
24 splines         TF-9NR-21-0058-J7 Price Picture
not
available
N24A <>
72-73 24 splines
    DRUM, Reverse 8121079
24 splines

1-1/2" surface 		ORY       TF-9NR-21-0057-G5 Price Picture
not
available
N24A <>
70- 24 splines
1-1/2" band surface
Fits only single wrap bands
24 splines

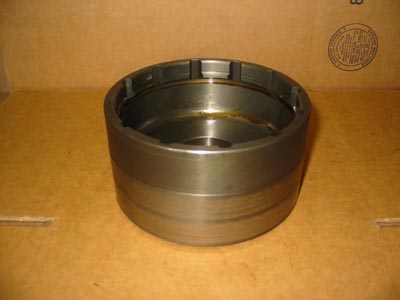

2-1/8" surface 		LVR.T268 2-49/64" 5-16/64"   TF-9NR-21-0056-E3 Price
Enlarge
N24A <>
  24 splines
2-1/8" band surface
No lip
    DRUM, Reverse 8124622
    DRUM, Reverse 3743051
24 splines

2-1/4" surface 		T268       TF-9NR-21-00H5-CN Price Picture
not
available
N24A <>A
  24 splines
2-1/4" band surface
Fits any band
24 splines

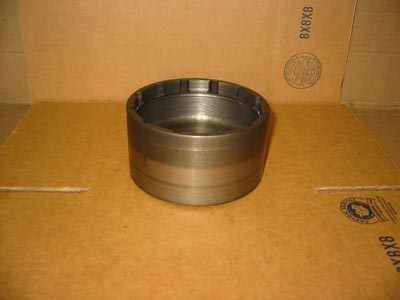

2-1/4" surface 		EEL 2-49/64" 5-20/64"   TF-9NR-21-005A-JU Price
Enlarge
N24A <>
78-87 24 splines
2-1/4" band surface
Flat inside
Beveled lip
    DRUM, Reverse 8132492
    DRUM, Reverse 8132492
    DRUM, Reverse 4130867
    DRUM, Reverse M4130867
24 splines

2-1/4" surface

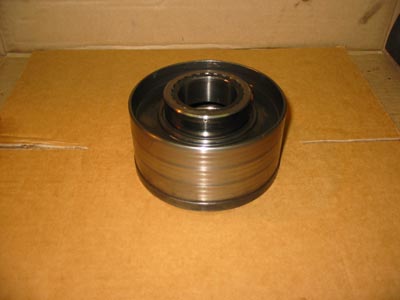

Recessed 		OGO.X281   5-5/16" 1-1/64" XT TF-9NR-21-0039-J7 Price
Enlarge

  24 splines
2-1/4" band surface
Stepped down inside
Uses thrust washer behind snap ring
    DRUM, Reverse 4446157
    DRUM, Reverse 83504126
24 splines

Raised 		RBB.T268 2-61/64" 5-15/64" 1-4/64" XT TF-9NR-21-003A-GR Price
Enlarge
  4446156
  24 splines, Press fit race
2-1/4" band surface
Stepped up inside, No thrust washer behind snap ring
    DRUM, Reverse 4737956
47 splines

1-5/8" surface 		GKE.T268 2-49/64" 5-15/64" 1-60/64" TF-9NR-21-0054-KY Price
Enlarge
N47A <>
64-69 47 splines
Single wrap band
Narrow band surface, 1-5/8" wide
47 splines

2-1/8" surface 		GVR       TF-9NR-21-0055-A1 Price Picture
not
available
N47A <>
68-69 47 splines
Double wrap band
Wide band surface, 2-1/8" wide
