  Page number:  TF-9NR-141
PUMP ASSEMBLY, Main
47487 parts in stock comprising 18299 unique part numbers from 55937 numbers listed. (11/14/2025)
Style Color
Code		 OA/Thick OD/Deep ID/Wide Our Part Number Price Picture
Tooth Counts ID Marks
Year Miscellaneous Info
Years   Part Info Number
Call 877-771-3372 for current price & availability ( 8am - 8pm Pacific Time )
Narrow journal

Lockup

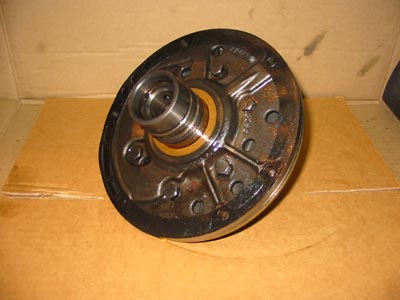

Narrow port 		K413 6-3/8"     TF-9NR-14-001C-E0 Price
Enlarge
  4617130 {Pump Body}
46178XX {Stator Support}
93 Lockup
Bushing journal = 50/64" long
Bore = 1-35/64"
3 rings, 3 holes, 3 balls
Bevel back
Flats in inner gear
Direct drum = 2 bushings
Input shaft = 2 sealing rings
Forward drum = 1 sealing ring
    OIL PUMP ASSEMBLY 4348708
Narrow journal

Lockup

Wide port 		YVG.K413 6-3/8"     TF-9NR-14-00AE-5N Price Picture
not
available
  52118268 {Pump Body}
52118295 {Stator Support}
  Lockup
Bushing journal = 50/64" long
Bore = 1-35/64"
3 rings, 3 holes, 3 balls
Bevel back
Flats in inner gear
    OIL PUMP ASSEMBLY 4740268
Narrow journal

Lockup

Wide port 		EEK 6-3/8"     TF-9NR-14-00GF-FX Price Picture
not
available
  52118996AA {Pump Body}
52118997AA {Stator Support}
  Lockup
Bushing journal = 50/64" long
Bore = 1-35/64"
3 rings, 3 holes, 3 balls
Bevel back
Flats in inner gear
Direct drum = 2 bushings
Forward drum = 1 sealing ring
Input shaft = 2 sealing rings
13 holes under gasket
Known to fit cases with wide (0.55") inlet port
    OIL PUMP ASSEMBLY 4778552
Narrow journal

Non-Lockup 		K413 6-3/8"     TF-9NR-14-00CX-90 Price Picture
not
available
  4617130 {Pump Body}
46178XX {Stator Support}
93 Non-Lockup
Bushing journal = 50/64" long
Bore = 1-35/64"
3 rings, 3 holes, 2 balls
Bevel back
Flats in inner gear
For 2-bushing direct drum
Input shaft has 2 rings
Forward drum has 1 ring
12 holes under gasket
Fits cases with narrow (0.34") inlet port
Wide journal

Lockup

1-31/64" bore 		K413 6-3/8"     TF-9NR-14-0085-L9 Price Picture
not
available
  2538410 {Stator Support}
  Lock up
Bushing journal = 1" long
Bore = 1-31/64"
3 rings, 3 holes, 3 balls
Bevel back
Tits in inner gear
Direct drum = 1 bushing
Forward drum = 1 sealing ring
Input shaft = 2 sealing rings
12 holes under gasket
    SHAFT, Converter Reaction 8130336
    HOUSING, Pump 8130353
J8130353
Wide journal

Lockup

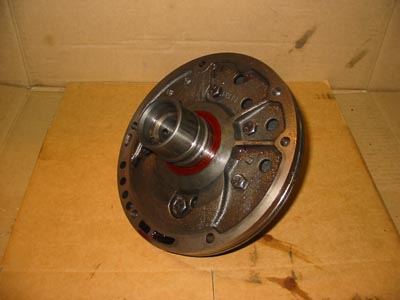

1-35/64" bore 		K413 6-3/8"     TF-9NR-14-001G-N8 Price
Enlarge
  2538278 {Pump Body}
2538410 {Stator Support}
  Lock up
Bushing journal = 1" long
Bore = 1-35/64"
3 rings, 3 holes, 3 balls
Bevel back
Tits in inner gear
Direct drum = 1 bushing
Forward drum = 1 sealing ring
Input shaft = 2 sealing rings
12 holes under gasket
    SHAFT, Converter Reaction 8130336
    HOUSING, Pump 8134676
    HOUSING, Front Oil Pump 4130192
      4202089
    OIL PUMP ASSEMBLY 4761660
Wide journal

Lockup

1-35/64" bore 		GGY 6-3/8"     TF-9NR-14-00N4-NY Price Picture
not
available
  <> {Pump Body}
2538410 {Stator Support}
  Lock up
Bushing journal = 1" long
Bore = 1-35/64"
3 rings, 3 holes, 3 balls
Bevel back
Tits in inner gear
Direct drum = 1 bushing
Forward drum = 1 sealing ring
Input shaft = 2 sealing rings
12 holes under gasket
    SHAFT, Converter Reaction 8130336
    HOUSING, Pump 8130353
Wide journal

Non-Lockup

1-2/64" bore 		K413 6-1/2"     TF-9NR-14-001K-MJ Price
Enlarge
  1942382 {Pump Body}
1942386 {Stator Support}
  Non-Lockup
Bushing journal = 1" long
Bore = 1-2/64"
2 rings, 3 holes, 2 balls
Flat back
Tits in inner gear
Wide journal

Non-Lockup

1-2/64" bore 		KBG 6-1/2"     TF-9NR-14-00MF-A4 Price Picture
not
available
  2538278 {Pump Body}
1942386 {Stator Support}
  Non-Lockup
Bushing journal = 1" long
Bore = 1-2/64"
2 rings, 3 holes, 2 balls
Flat back
Tits in inner gear
Wide journal

Non-Lockup

1-31/64" bore

6-1/4" long 		K413 6-1/4"     TF-9NR-14-0048-CC Price
Enlarge
  2538278 {Pump Body}
2538410 {Stator Support}
  Non-Lockup, Baby 904
Bushing journal = 1" long
Bore = 1-31/64"
2 rings, 3 holes, 2 balls
Flat back
Tits in inner gear
Direct drum = 1 bushing
Forward drum = 1 sealing ring
Input shaft = 1 sealing ring
    SHAFT, Converter Reaction 4028600
    HOUSING, Front Oil Pump 4130192
Wide journal

Non-Lockup

1-31/64" bore

6-1/2" long

Beveled 		K413 6-3/8"     TF-9NR-14-000P-AU Price
Enlarge
  2538278 {Pump Body}
2538410 {Stator Support}
  Non-Lockup
Bushing journal = 1" long
Bore = 1-31/64"
3 rings, 3 holes, 2 balls
Bevel back
Tits in inner gear
Direct drum = 1 bushing
Forward drum = 1 sealing ring
Input shaft = 2 sealing rings
12 holes under gasket
    SHAFT, Converter Reaction 8127007
    HOUSING, Pump 8128966
Wide journal

Non-Lockup

1-31/64" bore

6-1/2" long

Flat 		K413 6-1/2"     TF-9NR-14-001H-FA Price
Enlarge
  2538268 {Pump Body}
2538410 {Stator Support}
  Non-Lockup
Bushing journal = 1" long
Bore = 1-31/64"
2 rings, 3 holes, 2 balls
Flat back
Tits in inner gear
Direct drum = 1 bushing
Forward drum = 1 sealing ring
Input shaft = 1 sealing ring
    SHAFT, Converter Reaction 4028590
    HOUSING, Front Oil Pump 4130192
Wide journal

Non-Lockup

1-31/64" bore

6-1/2" long

Flat 		OEB 6-1/2"     TF-9NR-14-00LU-E3 Price Picture
not
available
  <> {Pump Body}
2538410 {Stator Support}
  Non-Lockup
Bushing journal = 1" long
Bore = 1-31/64"
2 rings, 3 holes, 2 balls
Flat back
Tits in inner gear
    SHAFT, Converter Reaction 8127007
    HOUSING, Pump 8128966
Wide journal

Non-Lockup

1-35/64" bore

6-1/4" long 		K413 6-1/4"     TF-9NR-14-000V-F7 Price
Enlarge
  2538278 {Pump Body}
2538410 {Stator Support}
  Non-Lockup, Baby 904
Bushing journal = 1" long
Bore = 1-35/64"
3 rings, 3 holes, 2 balls
Bevel back
Tits in inner gear
Direct drum = 1 bushing
Forward drum = 1 sealing ring
Input shaft = 2 sealing rings
    SHAFT, Converter Reaction 8128972
    HOUSING, Pump 8130353
J8130353
    SHAFT, Converter Reaction 4058632
    HOUSING, Front Oil Pump 4130192
Wide journal

Non-Lockup

1-35/64" bore

6-1/4" long 		GRB 6-1/4"     TF-9NR-14-00M4-MX Price Picture
not
available
  2538278 {Pump Body}
2538410 {Stator Support}
  Non-Lockup, Baby 904
Bushing journal = 1" long
Bore = 1-35/64"
3 rings, 3 holes, 2 balls
Bevel back
Tits in inner gear
Direct drum = 1 bushing
Forward drum = 1 sealing ring
Input shaft = 2 sealing rings
    SHAFT, Converter Reaction 4058413
    HOUSING, Front Oil Pump 4130192
Wide journal

Non-Lockup

1-35/64" bore

6-3/8" long 		K413 6-3/8"     TF-9NR-14-002J-LH Price
Enlarge
  2538278 {Pump Body}
2538410 {Stator Support}
  Non-Lockup
Bushing journal = 1" long
Bore = 1-35/64"
3 rings, 3 holes, 2 balls
Bevel back
Tits in inner gear
Direct drum = 1 bushing
Forward drum = 1 sealing ring
Input shaft = 2 sealing rings
    SHAFT, Converter Reaction 8128971
H8128971
    HOUSING, Pump 8130353
J8130353
Wide journal

Non-Lockup

1-35/64" bore

6-3/8" long 		LLK 6-3/8"     TF-9NR-14-00GK-G8 Price Picture
not
available
  2538278 {Pump Body}
2538410 {Stator Support}
  Non-Lockup
Bushing journal = 1" long
Bore = 1-35/64"
3 rings, 3 holes, 2 balls
Bevel back
Tits in inner gear
Direct drum = 1 bushing
Forward drum = 1 sealing ring
Input shaft = 2 sealing rings
12 holes under gasket
    SHAFT, Converter Reaction J8128971
    HOUSING, Pump J8130353
