  Page number:  TF-9NR-520
INPUT SHAFT
47487 parts in stock comprising 18299 unique part numbers from 55937 numbers listed. (11/14/2025)
Style Color
Code		 OA/Thick OD/Deep ID/Wide Our Part Number Price Picture
Tooth Counts ID Marks
Year Miscellaneous Info
Years   Part Info Number
Call 877-771-3372 for current price & availability ( 8am - 8pm Pacific Time )
  S061       TF-9NR-52-00EK-E6 Price Picture
not
available

75-76
      8120906
  S061       TF-9NR-52-00EL-G8 Price Picture
not
available

77-78
      8127836
  S061       TF-9NR-52-00EM-7A Price Picture
not
available

77-78
      8128976
  S061       TF-9NR-52-00EN-9E Price Picture
not
available

78
      8128975
  S061       TF-9NR-52-00EV-JX Price Picture
not
available

78
      4058151
  S061       TF-9NR-52-00EW-90 Price Picture
not
available

78
      4058614
  SO61       TF-9NR-52-00ER-8N Price Picture
not
available

78-79
    SHAFT, Input 4058546
  OGV       TF-9NR-52-00ET-ET Price Picture
not
available

79-81
    SHAFT, Input 4130788

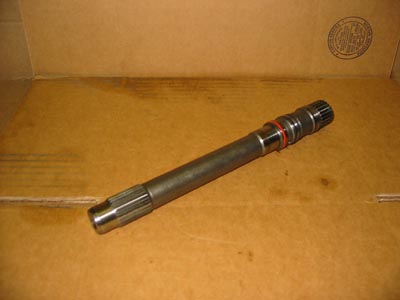

18 splines VLB.S061 9-7/16"     TF-9NR-52-007H-MJ Price
Enlarge
PN18A-23A <>
  2 rings
Pilot = None
23 splines X2-2 9-7/16"     TF-9NR-52-004N-AU Price Picture
not
available
PN23A-23A <>
  2 rings
Pilot = 50/64" long, 40/64" diameter
    SHAFT, Input 4058626
23 splines X2-2 9-7/16"     TF-9NR-52-004Q-71 Price Picture
not
available
PN23A-23A >B<
  2 rings
Pilot = 50/64" long, 40/64" diameter
    SHAFT, Input 8133780
23 splines SO61 9-7/16"     TF-9NR-52-00EU-GV Price Picture
not
available
PN23A-23A >B<
  2 rings
Pilot = 10/64" long, 40/64" diameter
    SHAFT, Input 4269140
      M4269140
26 splines

No ridge 		SO61 9-7/16"     TF-9NR-52-00AE-5N Price Picture
not
available
PN26A-23A <>
  Lockup
Tip
No ID ridge near sealing rings
    INPUT SHAFT 4505189
26 splines

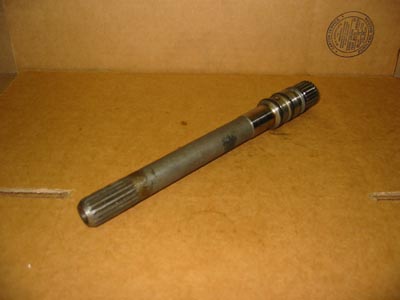

Ridge 		S061 9-7/16"     TF-9NR-52-007G-KG Price
Enlarge
PN26A-23A >B<
78-89 Lockup
Tip = 50/64" x 32/64"
ID ridge near sealing rings
    SHAFT, Input 8130327
    SHAFT, Input 8130327
    INPUT SHAFT 4130194
27 splines

1 ring 		SO61 8-11/16"     TF-9NR-52-00EG-FX Price Picture
not
available
N27A-23A <>
68-75 1 ring
No tip
    SHAFT, Input 2538407
27 splines

1 ring 		VOY.SO61 9-7/16"     TF-9NR-52-00EP-FJ Price Picture
not
available
N27A-23A <>
70-78 1 ring
No tip
    SHAFT, Input 8127008
      4028596
27 splines

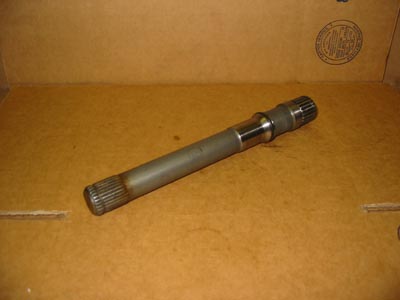

1 ring 		SO61 8-11/16"     TF-9NR-52-004P-GY Price
Enlarge
N27A-23A <>
  1 ring
Tip = None
    SHAFT, Input 4028602
27 splines

1 ring 		S061 8-11/16"     TF-9NR-52-00GQ-8N Price Picture
not
available
N27A-23A <K>
  1 ring
No tip
27 splines

2 rings 		S061 9-7/16"     TF-9NR-52-00EH-60 Price Picture
not
available
N27A-23A <>
  2 rings
No tip
      4130399
27 splines

2 rings 		LGY.SO61 9-7/16"     TF-9NR-52-00EJ-A4 Price Picture
not
available
N27A-23A >B<
  2 rings
No tip
    RETAINER, Front Clutch 8130344
J8130344
27 splines

2 rings 		OBL       TF-9NR-52-012G-GC Price Picture
not
available
N27A-23A >B<
  2 rings
No tip
    SHAFT, Input J8130344
