  Page number:  TF-9NR-710

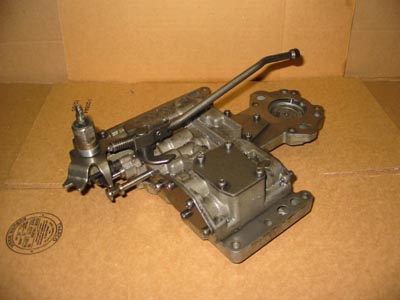

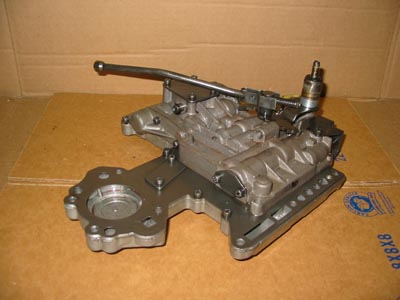

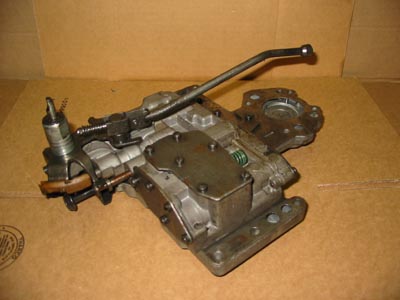

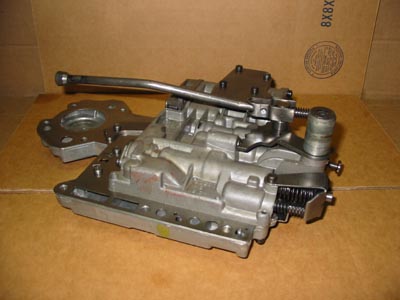

VALVE BODY ASSEMBLY, Main
47487 parts in stock comprising 18299 unique part numbers from 55937 numbers listed. (11/14/2025)
Style	Color Code	OA/Thick	OD/Deep	ID/Wide	Our Part Number	Price	Picture
	Tooth Counts			ID Marks
	Year	Miscellaneous Info
	Years		Part Info		Number
Call 877-771-3372 for current price & availability ( 8am - 8pm Pacific Time )
Lockup 3836648 top 55 plate No throttle body	X603				TF-9NR-71-006T-H9	Price	Picture not available
				3836648 {Top} 55 {Cheese Plate} 4202747 {Bottom} 1 {Solenoid Count}
		Lockup No throttle body With LU tube Rooster comb = Z, Green Electric lockup
Lockup 4058177 top	K596				TF-9NR-71-016G-LH	Price	Picture not available
				4058177 {Top} 4058179 {Bottom}
		Lockup Throttle body LU tube Rooster comb = R, Green plastic
Lockup 4130495 top No throttle body	OBK				TF-9NR-71-01VA-C5	Price	Picture not available
				4130495 {Top} 4202528 {Bottom}
		Lockup No throttle body LU tube Plastic lever Narrow port
Lockup 4130495 top Throttle body	LVO				TF-9NR-71-01V8-NK	Price	Picture not available
				4130495 {Top} 4202528 {Bottom}
		Lockup Throttle body LU tube Plastic lever Narrow port
Lockup 4446192 top 23 plate No throttle body	X603				TF-9NR-71-011J-MJ	Price	Picture not available
				4446192 {Top} 23 {Cheese Plate} 4202747 {Bottom} 1 {Solenoid Count}
		Lockup No throttle body With LU tube Rooster comb = Z, Green Electric lockup
Lockup 4617102 top	GVY				TF-9NR-71-01RA-71	Price	Picture not available
				4617102 {Top} 4505047 {Bottom} 1 {Solenoid Count} 1 WIRE {Solenoid ID}
		Lockup Throttle body With LU tube Electric lockup Narrow port
Lockup 4617102 top	BBE				TF-9NR-71-01KL-FJ	Price	Picture not available
				4617102 {Top} 52118405 {Bottom} 1 {Solenoid Count} 2 WIRES {Solenoid ID}
		Lockup Throttle body With LU tube Electric lockup
Non-lockup ?? lever 3..1.70 top 008 or 800 plate ? throttle body	GY				TF-9NR-71-003N-9T	Price	Picture not available
				3..1.70 {Top} 800 OR 008 {Cheese Plate} 3743160 {Bottom}
		Non-lockup ? throttle body
Non-lockup ?? lever 3410925 top 512 plate Throttle body					TF-9NR-71-00Q3-E0	Price	Picture not available
				3410925 {Top} 512 {Cheese Plate} 3410435 {Bottom}
		Non-lockup AMC Throttle body Narrow port
Non-lockup ?? lever 3410990 top 008 plate Part throttle body					TF-9NR-71-00VY-EP	Price	Picture not available
				3410990 {Top} 008 {Cheese Plate} 3410994 {Bottom}
		Non-lockup Part throttle body No LU tube Rooster comb =
Non-lockup ?? lever 3410999 top <> plate Part throttle body	X603				TF-9NR-71-003L-5N	Price	Enlarge
				3410999 {Top} 3410994 {Bottom}
		Non-lockup Slant 6 Part throttle body
Non-lockup ?? lever 3681230 top					TF-9NR-71-0191-F4	Price	Picture not available
				3681230 {Top} 3681519 {Bottom}
		Small block Throttle body Narrow port
Non-lockup ?? lever 3743155 top 161 plate Throttle body	LYL				TF-9NR-71-0185-CC	Price	Picture not available
				3743155 {Top} 162 {Cheese Plate} 3743159 {Bottom}
		Non-lockup Small block Throttle body Narrow port
Non-lockup Double bump 2464549 top <> plate	RLO				TF-9NR-71-0294-EE	Price	Picture not available
				2464549 {Top} <> {Cheese Plate} 2400340 {Bottom}
		Non-lockup No throttle body No LU tube Double bump lever Linkage bore = 20/64", 40/64"
Non-lockup Double bump 2464549 top <> plate	VGE.K596				TF-9NR-71-00ET-ET	Price	Picture not available
				2464549 {Top} DBL BUMP {Cheese Plate} 2400340 {Bottom}
		Non-lockup No throttle body No LU tube Double bump lever Linkage bore = 20/64", 40/64"
Non-lockup Double bump 2466885 top <> plate No throttle body	VYKB				TF-9NR-71-0086-CC	Price	Enlarge
				2466885 {Top} <> {Cheese Plate} 2466886 {Bottom}
		Non-lockup No throttle body No LU tube Double bump steel lever
Non-lockup Double bump 2588956 top	K596				TF-9NR-71-00VX-MM	Price	Picture not available
				2588956 {Top} 2801295 {Bottom}
		Non-lockup No throttle body Double bump steel lever
Non-lockup Double bump 2801856 top <> plate Part throttle body	OOB				TF-9NR-71-003M-7Q	Price	Enlarge
				2801856 {Top} <> {Cheese Plate} 2801295 {Bottom}
		Non-lockup Slant 6 Part throttle body Double bump steel lever
Non-lockup No lever	LBR				TF-9NR-71-028T-EH	Price	Picture not available
				C7AP-7A092-G {Top} U {Cheese Plate} C7AP-7A101-A {Center} U {Cheese Plate} C7AP-7A126-A {Bottom} 0 {Solenoid Count}
	74	Mark = E4.2
			VALVE BODY, Main Control		3681428
Non-lockup No lever	GEO				TF-9NR-71-025E-HE	Price	Picture not available
		Non-lockup
			VALVE BODY, Main Control		4202119
Non-lockup No lever	KGR				TF-9NR-71-025H-PL	Price	Picture not available
		Non-lockup
			VALVE BODY, Main Control		4202798
Non-lockup No lever	BGY				TF-9NR-71-025K-9T	Price	Picture not available
	82-85	Non-lockup
			VALVE BODY, Main Control		4269151
Non-lockup No lever 3836648 top 75 plate Throttle body	X603				TF-9NR-71-003P-FX	Price	Enlarge
				3836648 {Top} 75 {Cheese Plate} 4202528 {Bottom}
		Non-lockup Baby 904 Throttle body No lever
Non-lockup No lever 4058196 top 642 plate No throttle body	KBEB				TF-9NR-71-00E5-FQ	Price	Picture not available
				4058196 {Top} 642 {Cheese Plate} 4058198 {Bottom}
		Non-lockup No throttle body No LU tube No lever
			VALVE BODY, Main Control		4130159
Non-lockup No lever 4130495 top Throttle body	BLVL				TF-9NR-71-01V9-QM	Price	Picture not available
				4130495 {Top} 4202528 {Bottom}
		Non-lockup Throttle body No LU tube No lever Narrow port
Non-lockup Plastic 2892348 top <> plate Part throttle body	ORE				TF-9NR-71-003J-MJ	Price	Picture not available
				2892348 {Top} 2801295 {Center}
	70	Non-lockup Slant 6 Part throttle body
Non-lockup Plastic 3681470 top --- plate Part throttle body	BBL				TF-9NR-71-01WG-HL	Price	Picture not available
				3681470 {Top} <> {Cheese Plate} 3681517 {Bottom}
		Non-lockup Part throttle body No LU tube Rooster comb = Plastic
Non-lockup Plastic 3681470 top 008 plate Part throttle body	REEG				TF-9NR-71-003K-PL	Price	Enlarge
				3681470 {Top} 008 {Cheese Plate} 3681517 {Bottom}
		Non-lockup Part throttle body No LU tube Rooster comb = Z, Tan
Non-lockup Plastic 3743155 top Throttle body	VKGO				TF-9NR-71-0192-H6	Price	Picture not available
				3743155 {Top} 162 {Cheese Plate} 3743158 {Bottom}
		Non-lockup Small block Throttle body
Non-lockup Plastic 3743157 top No throttle body	YGOR				TF-9NR-71-01N2-LW	Price	Picture not available
				3743157 {Top} 3743160 {Bottom}
		Non-lockup No throttle body
Non-lockup Plastic 3836648 top 59 plate No throttle body	BKLV				TF-9NR-71-0079-JJ	Price	Enlarge
				3836648 {Top} 59 {Cheese Plate} 4202528 {Bottom}
		Non-lockup Slant 6 No throttle body Plastic lever
Non-lockup Plastic 4058196 top 641 plate No throttle body	YBOR				TF-9NR-71-0043-A1	Price	Enlarge
				4058196 {Top} 641 {Cheese Plate} 4058198 {Bottom}
		Non-lockup No throttle body No LU tube Plastic lever
			VALVE BODY, Main Control		8130338
Non-lockup Plastic 4130495 top No throttle body	EGLR				TF-9NR-71-01VC-H9	Price	Picture not available
				4130495 {Top} 4202528 {Bottom}
		Non-lockup No throttle body No LU tube Plastic lever Narrow port
Non-lockup Plastic 4446192 top 16 plate Throttle body	RKV				TF-9NR-71-0290-F4	Price	Picture not available
				4446192 {Top} 16 {Cheese Plate} 4202528 {Bottom}
		Non-lockup Throttle body No LU tube Plastic lever
			VALVE BODY, Main Control		4617198
Non-lockup Plastic 4446192 top 77 plate Throttle body	VLK				TF-9NR-71-01LM-JM	Price	Picture not available
				4446192 {Top} 77 {Cheese Plate} 4202528 {Bottom}
		Non-lockup Throttle body No LU tube Plastic lever
			VALVE BODY, Main Control		4348765
Non-lockup Plastic 4448192 top 40 plate Throttle body	LYO				TF-9NR-71-00AW-GV	Price	Picture not available
				4448192 {Top} 40 {Cheese Plate} 4202528 {Bottom}
	92	Non-lockup Throttle body No LU tube Plastic lever
			VALVE BODY, Main Control		4617085
Non-lockup Plastic 4617102 top	LER				TF-9NR-71-01LX-CC	Price	Picture not available
				4617102 {Top} 4617074 {Bottom}
	93	Non-lockup Trottle body No LU tube plate lever
Non-lockup Plastic 4617102 top 94 plate	VEL				TF-9NR-71-02A7-KV	Price	Picture not available
				4617102 {Top} 94 {Cheese Plate} 4617074 {Bottom}
		Non-lockup Throttle body No LU tube 94 plate Plastic lever
Non-lockup Single bump 2464549 top <> plate	OLR.				TF-9NR-71-00AE-5N	Price	Picture not available
				2464549 {Top} <> {Cheese Plate} 2400339 {Bottom}
		Non-lockup Slant 6 No throttle body Cable shift Single bump steel lever Linkage bore = 20/64", 40/64"
Non-lockup Single bump 2464575 top <> plate	GOE				TF-9NR-71-020Y-GK	Price	Picture not available
				2204575 {Top} <> {Cheese Plate} 2400339 {Bottom}
		Non-lockup Slant 6 No throttle body Cable shift Single bump steel lever

  Last updated:  11/14/2025
Master Index

Related items: 8124462    BODY, Governor 3681959    PLATE, Sun Gear Shell 4130192    HOUSING, Front Oil Pump 4269053    TRANSMISSION ASSEMBLY 4740268    OIL PUMP ASSEMBLY 4269141    CASE, Transmission 52118344    CASE, Transmission 52078723AE    LEVER, Throttle Valve 4617176    PLATE, Pressure 4269948    HOUSING, Front Oil Pump 8123447    PISTON, Front Clutch 3743518    SUPPORT, Governor 4202047    CASE, Transmission 3780244    KIT, Governor Repair 8120836    CASE, Transmisson 4202574    TRANSMISSION ASSEMBLY 8120906     89-53-001-141    TRANSMISSION ASSEMBLY 8120841    SUPPORT, Output Shaft M4130512    GEAR, Annulus (Front) 8121180    PISTON, Reverse Servo 4028852    TRANSMISSION ASSEMBLY 8124322    CARRIER, Front 2466144    TRANSMISSION ASSEMBLY 2466281    PLATE, Front Pressure 4130577    BODY, Governor 8124159    GEAR, Annulus (Front) 8132483    RETAINER, Front Clutch 8124323    CARRIER, Front 8130336    SHAFT, Converter Reaction 2538941    GEAR, Speedometer Driven 4130509    SHELL, Sun Gear J8130600    CASE, Transmission 8132490    SHAFT, Output M4130510    SUPPORT, Planetary Gear 8130343    SHAFT, Output 2466119    TRANSMISSION ASSEMBLY 2601157    SPRAG, Parking 8133389    GEAR, Sun 4431558     4164210     3681843     3410503    CASE, Transmission 2204952    LEVER, Kickdown Band 8120835    WASHER (THRUST)

Known to fit Chrysler, AMC applications.
