  Page number:  BW-TKB-520
INPUT SHAFT
Call 877-771-3372 for current price & availability ( 8am - 8pm Pacific Time )
Style Color
Code		 OA/Thick OD/Deep ID/Wide Our Part Number Price Picture
Tooth Counts ID Marks
Year Miscellaneous Info
Years   Part Info Number
Call 877-771-3372 for current price & availability ( 8am - 8pm Pacific Time )

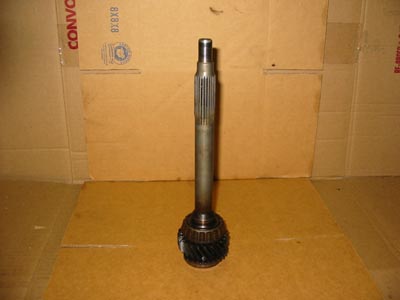

19 teeth LVO.SO91 9-1/2" 2-32/64"   BW-TKB-52-003T-E6 Price
Enlarge
PN10A-L19-N30A25 <>, (038)
87-93 Cluster = 33 teeth
Tip = 38/64" x 1-1/64"
Splines = 1-3/64"
Shank = 1"
Seal journal = 1-16/64"
Bearing journal =
Offset = None, Taper bearing
Syncro teeth = 25 short flush points

      13-52-085-038
    GEAR, Main Drive T1105-16U
    GEAR, Main Drive E7ZZ-7017-A
F0TZ-7017-D
20 teeth

8-55/64" 		S128 8-55/64"     BW-TKB-52-003Y-FJ Price Picture
not
available
PN -L20-N30A (002)
83-84 Cluster = teeth
    GEAR, Main Drive 13-53-085-002
    GEAR, Main Drive 14071725
20 teeth

9-5/16" long 		BEK.S128 9-5/16" 2-26/64"   BW-TKB-52-003W-9E Price Picture
not
available
PN14-L20-N30A25 <>
82-84 Cluster = 37 teeth
Tip = 38/64" x 1-19/64"
Splines = 62/64"
Shank = 59/64"
Seal journal = 1-16/64"
Bearing journal = 1-37/64"
Offset = 2-19/64"
Syncro teeth = 25 flush points
    GEAR, Main Drive 14050731
21 teeth BEY 8-57/64"     BW-TKB-52-003X-CG Price Picture
not
available
PN -L21-N30A25 (004)
82-85 Cluster = teeth
    GEAR, Main Drive 13-52-085-004
    GEAR, Main Drive T1105-16K
    GEAR, Main Drive 14050779
21 teeth KOR       BW-TKB-52-000C-NY Price Picture
not
available

83 Cluster = teeth
    GEAR, Main Drive 89-83-500-286
21 teeth T       BW-TKB-52-001C-E0 Price Picture
not
available
PN14-L21-N30A25
83-87 Cluster = 35 teeth
    GEAR, Main Drive T1105-16J
    GEAR, Main Drive 14069867
21 teeth GKR       BW-TKB-52-000E-H3 Price Picture
not
available
PN14A-L21-C30A25
84-85 Cluster = teeth
    GEAR, Main Drive T1104-16C
    GEAR, Main Drive 89-83-500-968
21 teeth VKK       BW-TKB-52-01Y7-PL Price Picture
not
available
PN -L21-N30A25
93-95 Cluster = 37 teeth
    GEAR, Maindrive T1105-16W
    GEAR, Maindrive 12541295
21 teeth

splines

8-7/8" 		YKB 8-7/8"     BW-TKB-52-01Y0-J4 Price Picture
not
available
PN -L21-N30A25 (049)
92-00 Cluster = teeth
    GEAR, Main Drive 13-52-085-049
21 teeth

10 splines

9-1/4" 		RLV 9-1/4"     BW-TKB-52-000A-JU Price Picture
not
available
PN10A-L21-N30A25 <>
82-83 Cluster = 37 teeth
Tip = 38/64" x 1-23/64"
Syncro teeth = 25 flush points
    GEAR, Main Drive 8134014
21 teeth

10 splines

9-21/64" 		BLL 9-21/64" 2-32/64"   BW-TKB-52-002M-6P Price Picture
not
available
PN10A-L21-N30A25 (008), 52008
84-88 Cluster = 37 teeth
Tip = 38/64" x 1-29/64"
Splines = 1-7/=64"
Shank = 1"
Seal journal = 1-16/64"
Bearing journal =
Offset = None, Taper bearing
Syncro teeth = 25 flush points
    SHAFT, Input 13-51-085-008
    GEAR, Main Drive T1104-16
    GEAR, Main Drive 83500975
    GEAR, Main Drive 89-83-500-975
21 teeth

10 splines

9-35/64" 		S091 9-35/64"     BW-TKB-52-003P-FX Price Picture
not
available
PN10A-L21-N30A25 <>, (005)
  Cluster = 37 teeth
      13-52-085-005
    GEAR, Main Drive T1105-16A
    GEAR, Main Drive E3ZZ-7017-B
21 teeth

10 splines

9-35/64" 		VBE 9-35/64"     BW-TKB-52-003Q-60 Price Picture
not
available
PN10A-L21-N30A25 <> (017)
85-86 Cluster = teeth
      13-52-085-017
    GEAR, Main Drive T1105-16C
    GEAR, Main Drive E5ZZ-7017-A
21 teeth

14 splines

8-13/16" 		BRR 8-13/16" 2-31/64"   BW-TKB-52-001G-N8 Price Picture
not
available
PN14-L21-N30A25 <> 52012
84-89 Cluster = 37 teeth
Tip = 37/64" x 1-1/64"
Splines = 61/64"
Shank = 59/64"
Seal journal = 1-16/64" Bearing journal =
Offset = None
Syncro teeth = 25 short flush points
    GEAR, Maindrive 13-52-085-012
    GEAR, Main Drive T1105-16G
    GEAR, Main Drive 14083542

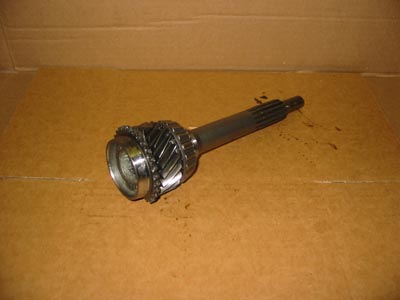

21 teeth

14 splines

9-19/64" 		S091 9-19/64"     BW-TKB-52-0040-FU Price
Enlarge
PN14-L21-N30A25 <>, (003), 52003
  Cluster = 37 teeth
Tip = 38/64" x 1-22/64"
Splines = 61/64"
Shank = 58/64"
Seal journal = 1-4/64"
Bearing journal =
Offset = None, Taper bearing
Syncro teeth = 25 short flush points
      13-52-085-003
    GEAR, Main Drive T1105-16F
    GEAR, Main Drive 14050778
21 teeth

14 splines

9-19/64" 		KOK 9-19/64"     BW-TKB-52-012M-8R Price Picture
not
available
PN14-L21-N30A25 <BBB>
  Cluster = 37 teeth
Syncro teeth = 25 short flush points
21 teeth

14 splines

9-20/64" 		YOV 9-20/64"     BW-TKB-52-01Y1-L6 Price Picture
not
available
PN14-L21-N30A25 (045)
89-93 Cluster = 37 teeth
Syncro teeth = 25 flush points
    MAIN DRIVE 13-52-085-045
21 teeth

14 splines

9-3/8" 		KOY 9-3/8"     BW-TKB-52-0042-KY Price Picture
not
available
PN14-L21-N30A <>, (043)
88-89 Cluster = 37 teeth
Tip = 38/64" x 1-23/64"
Splines = 62/64" (2-1/2" long)
Shank = 59/64"
Seal journal = 1-16/64"
Bearing journal =
Offset = None, Taper bearing
Syncro teeth = 25 flush points
    SHAFT, Main Drive 13-52-085-043
    GEAR, Main Drive 10117835
10140513
21 teeth

14 splines

9-3/8" 		EVR 9-3/8"     BW-TKB-52-00KF-82 Price Picture
not
available
PN14-L21-N30A (043), AW2043
88-92 Cluster = 37 teeth
    SHAFT, Main Drive 13-52-085-043
    GEAR, Main Drive T1105-16X
    GEAR, Main Drive 10140513
21 teeth

14 splines

9-5/16" 		EYL 9-20/64"     BW-TKB-52-002L-QM Price Picture
not
available
PN14-L21-N30A25 (010)
  Cluster = 37 teeth
Syncro teeth = 25 flush points
    SHAFT, Input 13-51-085-010
21 teeth

14 splines

10-11/16" 		YKG 10-11/16" 2-31/64"   BW-TKB-52-001F-L6 Price Picture
not
available
PN14-L21-N30A25 <>, (002), 52002
82-87 Cluster = teeth
Tip = 38/64" x 1-3/64"
Splines = 61/64"
Shank = 59/64"
Seal journal = 1-16/64
Bearing journal =
Offset = None, Taper bearing
Syncro teeth = 25 short flush points
      13-52-085-002
    GEAR, Main Drive T1105-16L
    GEAR, Main Drive 14050777
21 teeth

24 splines

9-1/4" 		OVG 9-1/4"     BW-TKB-52-01XX-GR Price Picture
not
available
PN24A-L21-N30A25 (063)
  Cluster = 37 teeth
Syncro teeth = 25 short flush points
    SHAFT, Input 13-52-085-063
21 teeth

26 splines 		YRG 9-3/8"     BW-TKB-52-00F2-KK Price Picture
not
available
PN26-L21-N30A25 <>, (048), BW2048
94-95 Cluster = 37 teeth
      13-52-085-048
    GEAR, Maindrive T1105-16R
    GEAR, Main Drive 12544059
22 teeth

10 splines 		VRV 9-35/64"     BW-TKB-52-003R-82 Price Picture
not
available
PN10A-L22-N30A25 (026)
85-86 Cluster = teeth
      13-52-085-026
    GEAR, Main Drive T1105-16E
    GEAR, Main Drive E5ZZ-7017-C
22 teeth

14 splines 		OYB 8-13/16"     BW-TKB-52-006P-71 Price Picture
not
available
PN14A-L22-N30A25 <>, (040)
86-89 Cluster = 35 teeth
Syncro teeth = 25 short flush points
      13-52-085-040
    GEAR, Main Drive 15547304
22 teeth

24 splines 		GLY 9-21/64"     BW-TKB-52-01TH-GK Price Picture
not
available
PN24A-L22-N30A25 <>, (008)
83 Nissan
Cluster = 35 teeth
25 points
    GEAR, Main Drive 13-52-085-008
    GEAR, Main Drive T1105-16M
    GEAR, Main Drive C2201-P9500
23 teeth OYY 9-16/64"     BW-TKB-52-01Y2-N8 Price Picture
not
available
PN A -L23-N (050)
93 Cluster = teeth
    GEAR, Main Drive 13-52-085-050
    GEAR, Main Drive T1105-16Z
    GEAR, Main Drive F3ZZ-7017-A
23 teeth GYL 10"     BW-TKB-52-003V-7A Price Picture
not
available
PN A-L23-N (055)
94-95 Cluster = teeth
    GEAR, Main Drive 13-52-085-055
    GEAR, Main Drive T1105-16P
    GEAR, Main Drive F4ZZ-7017-B
23 teeth

10 splines 		SO91 9-19/64"     BW-TKB-52-002K-NK Price Picture
not
available
PN10A-L23-N30A25 (025)
85-93 Cluster = teeth
    GEAR, Main Drive 13-52-085-025
    GEAR, Main Drive T1105-16D
      E5ZZ-7017-B
23 teeth

10 splines 		OGG 9-31/32" 2-47/64"   BW-TKB-52-00TE-H9 Price Picture
not
available
PN10A-L23-N30A25 (052), 52052
  Cluster = 34 teeth
Tip = 43/64" x 1-6/64"
Splines = 1-3/64"
Shank = 1"
Seal journal = 1-16/64"
Bearing journal =
Offset = None, Taper bearing
Syncro teeth = 25 flush points
    SHAFT, Main Drive 13-52-085-052
    GEAR, Main Drive T1105-16H
    GEAR, Main Drive F4ZZ-7017-A

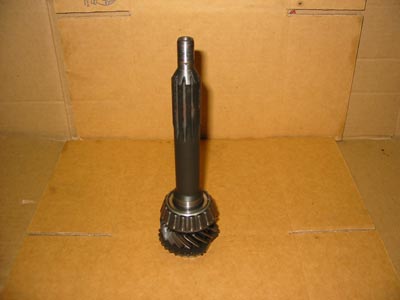

23 teeth

24 splines 		OOG 11-3/4"     BW-TKB-52-0071-90 Price
Enlarge
PN24A-L23-N30A25 <>
84-86 Nissan
Cluster = teeth
Syncro teeth = 25 points
    GEAR, Main Drive T1105-16Q
    GEAR, Main Drive C2201-06P01
24 teeth EBR       BW-TKB-52-01C1-GG Price Picture
not
available
-L24-C30A25 (041)
  Cluster = 31 teeth
Fits only Ford Cosworth T5
Not available in United States
      13-52-085-041
24 teeth LKB       BW-TKB-52-01C2-JJ Price Picture
not
available
-L24-C30A25 (028)
  Cluster = 31 teeth
Fits only Ford Cosworth T5
Not available in United States
      13-52-085-028
24 teeth KGB 9-16/64"     BW-TKB-52-01Y4-HE Price Picture
not
available
PN A-L24-N (060)
  Cluster = teeth
    GEAR, Main Drive 13-52-085-060
    GEAR, Main Drive T1105-16AB
24 teeth YRE 9-48/64"     BW-TKB-52-01Y5-KG Price Picture
not
available
PN A -L24-N (056)
  Cluster = teeth
    GEAR, Main Drive 13-52-085-056
24 teeth LOY 9-16/64"     BW-TKB-52-01Y3-FA Price Picture
not
available
PN A-L24-N (020)
85-93 Cluster = teeth
    GEAR, Main Drive 13-52-085-020
24 teeth OYG 9-16/64"     BW-TKB-52-01Y6-MJ Price Picture
not
available
PN A-L24-N
87-93 Cluster = teeth
    GEAR, Main Drive T1105-16AA
    GEAR, Main Drive E7ZZ-7017-B
24 teeth

10 splines 		S091 9-5/16"     BW-TKB-52-003N-9T Price Picture
not
available
PN10A-L24-N30A25 <B>, (011)
  Cluster = teeth
25 points
Capri, 83-84, 302V8-50
Mustang, 83-84, 302V8-50
Thunderbird, 83, 302V8-50
    GEAR, Main Drive 13-52-085-011
    GEAR, Main Drive T1105-16B
    GEAR, Main Drive E3ZZ-7017-A
24 teeth

10 splines 		LVR 9-5/16" 2-59/64"   BW-TKB-52-01WW-CN Price Picture
not
available
PN10A-L24-N30A25 <B>, (011)
  Cluster = 31 teeth
Tip = 43/64" x 56/64"
Splines = 1-3/64"
Shank = 1"
Seal journal = 1-16/64"
Bearing journal =
Offset = None, Taper bearing
Syncro teeth = 25 flush points
    GEAR, Main Drive 13-52-085-011
    GEAR, Main Drive T1105-16B
    GEAR, Main Drive E3ZZ-7017-A
24 teeth

26 splines 		RBR 8-13/16"     BW-TKB-52-001E-J4 Price Picture
not
available
PN26-L24-N30A25 <B>, (010)
83-87 Cluster = 31 teeth
Syncro teeth = 25 points
    SHAFT, Input 13-52-085-010
    GEAR, Main Drive T1105-16T
    GEAR, Main Drive 14083546
24 teeth

26 splines 		RBG 8-3/4"     BW-TKB-52-0043-A1 Price Picture
not
available
PN26-L24-N30A (019)
88-92 Cluster = teeth
    SHAFT, Input 13-52-085-019
    GEAR, Main Drive T1105-16V
    GEAR, Main Drive 10117834
26 teeth

10 splines 		GKY 9-13/16" 2-33/64"   BW-TKB-52-013Q-82 Price Picture
not
available
PN10A-L26-N30A25
  Cluster = teeth
Tip = 38/64" x 62/64"
Splines = 1-4/64"
Syncro teeth = 25 points
      XR3Z-7017-A
26 teeth

10 splines 		BRL 9-7/8" 2-33/64"   BW-TKB-52-013G-HE Price Picture
not
available
PN10A-L26-N30A25 T0617 13 4757
  Cluster = teeth
Tip = 38/64" x 62/64", Splines = 1-3/64"
Shank = 1"
Seal journal = 1-16/64"
Bearing journal =
Offset = None, Taper bearing
Syncro teeth = 25 flush points

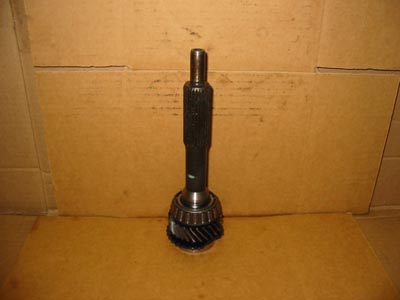

    SHAFT, Input 4R3Z-7017-A
26 teeth

26 splines 		BYO 9-5/16" 2-32/64"   BW-TKB-52-0068-FF Price
Enlarge
PN26A-L26-N30A25 (047), 52047
93-02 Cluster = 43 teeth
25 points
      13-52-085-047
    GEAR, Maindrive T1105-16Y
    GEAR, Main Drive 12520790
?? teeth

22 splines 		KYL       BW-TKB-52-00HJ-F7 Price Picture
not
available
PN22-L..-N30A25
  Cluster = teeth
  Last updated:  04/09/2025
Master Index


Related items:

C2605-P9500    SYNCHRONIZER, 3rd & 4th
13-52-080-031
13-52-080-001
13-52-171-068
14053647    TRANSMISSION ASSEMBLY
14084160    TRANSMISSION ASSEMBLY
14050795    Gear, 2nd Speed
14101345    SYNCHRONIZER, 3rd & 4th
13-52-000-071    TRANSMISSION ASSEMBLY
8134058    Ring Set, 3rd & 4th
14050757    COVER, Top
13-52-077-053
XR3Z-7K316-AA    GEAR, 5th Speed (Driven)
8134083    Gear, 5th Speed Drive
13-53-171-012    MAINSHAFT
13-52-080-9F2
14091315    CASE, Transmission
2R3Z-7003-BA    TRANSMISSION ASSEMBLY
14040573    TRANSMISSION ASSEMBLY
10117839    SYNCHRONIZER, 5th Speed Gear
13-52-080-029
14083536    Gear, Counter Cluster
89-33-001-450    TRANSMISSION ASSEMBLY
89-53-001-547    TRANSMISSION ASSEMBLY
15546826    CASE, Transmission
13-52-000-196    TRANSMISSION ASSEMBLY
E7ZZ-7222-A    COVER, Top
E8ZZ-7174-A    CONE
13-52-171-041    MAINSHAFT
13-52-000-005
14050751    COUNTERSHAFT
30531-01S50    FORK, Clutch Release
10104441    CASE, Transmission
13-52-080-065
13-52-080-046
E5ZZ-7107-C    RING, Synchronizer Blocking
D4ZZ-7107-B    RING, Synchronizer Blocking
E7SZ-7003-AA
13-52-066-019
13-52-080-018
13-52-027-010
13-52-000-238
83510192    SYNCHRONIZER, 3rd & 4th Speed
C2607-P9500    RING, Synchronizer

Known to fit Borg Warner, Ford, GMC, Renault, AMC, Jeep, Datsun, Nissan applications.

Payment 877-771-3372 More parts 877-771-3372 Contact


Unless otherwise indicated, all parts are USED

We have millions of used transmission parts in stock. If we don't list the part you need, please contact us.


We would like to keep this website ad-free. If you find this site useful, a small donation would be appreciated. Please click Gift Box for more information.

Transmission parts for the masses
877-771-3372
8am - 8pm Pacific Time



All content copyright 1984-2025 by mmerlinn.

Inflation Made Simple
  Last update:  04/09/2025
