  Page number:  FD-C4F-930
BELL HOUSING
47535 parts in stock comprising 18326 unique part numbers from 56042 numbers listed. (12/02/2025)
Style Color
Code		 OA/Thick OD/Deep ID/Wide Our Part Number Price Picture
Tooth Counts ID Marks
Year Miscellaneous Info
Years   Part Info Number
Call 877-771-3372 for current price & availability ( 8am - 8pm Pacific Time )
L4 (122, 140)

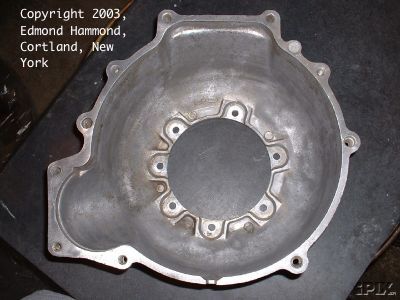

0.480" pins 		GYE 6-3/4" 12-7/16" PP 5-1/8" BC FD-C4F-93-000V-AF Price
Enlarge
  D1MP-7976-AA
71-73 122L4-20
Top bolts = 5-1/8" centers
No cable boss
Starter = 800 pocket, 3 bolts 5/16" diameter
? flexplate teeth
Small round bell
Dowel pins = 0.480" diameter
    HOUSING, Converter D1FZ-7976-A
L4 (122, 140)

0.480" pins

Air cooled 		BYV 6-5/8"   4-1/8" CC FD-C4F-93-000T-H9 Price Picture
not
available
  71EG-7976-CA
72-74 122L4-20, Capri
Top bolts = 5-1/8" centers
No cable boss
Starter = 800 pocket, 3 bolts 5/16" diameter
? flexplate teeth
Small round bell
Dowel pins = 0.480" diameter
Air cooled
    HOUSING, Converter D2RY-7976-B
L4 (122, 140)

0.600" pins

Top bolts on 4-1/8" centers 		LRL 5-13/16" 12-7/16" PP 4-1/8" BC FD-C4F-93-000Q-93 Price Picture
not
available
  D4ZP-7976-AA
74-78 140L4-23
No cable boss
3 bolt 800 starter pocket
? flexplate teeth
Narrow flat top bell
Top bolts on 4-1/8" centers
Uses three 3/8" starter bolts
Uses 0.600" diameter line up pins
D42P-7976-AA fits
L4 (122, 140)

0.600" pins

Top bolts on 4-1/8" centers 		GVB 5-13/16" 12-7/16" PP 4-1/8" BC FD-C4F-93-000R-C5 Price Picture
not
available
  D4ZP-7976-AB
74-78 140L4-23
No cable boss
3 bolt 800 starter pocket
? flexplate teeth
Narrow flat top bell
Top bolts on 4-1/8" centers
Uses three 3/8" starter bolts
Uses 0.600" diameter line up pins
D42P-7976-AA fits
    HOUSING, Converter D4ZZ-7976-A
L4 (122, 140)

0.600" pins

Top bolts on 4-1/8" centers 		LE 5-13/16" 12-7/16" PP 4-1/8" BC FD-C4F-93-0014-H6 Price Picture
not
available
  D4ZP-7976-AA-1-AB
74-78 140L4-23
No cable boss
3 bolt 800 starter pocket
? flexplate teeth
Narrow flat top bell
Top bolts on 4-1/8" centers
Uses three 3/8" starter bolts
Uses 0.600" diameter line up pins
D42P-7976-AA fits
Fits 74-78 140L4-23
L4 (122, 140)

0.600" pins

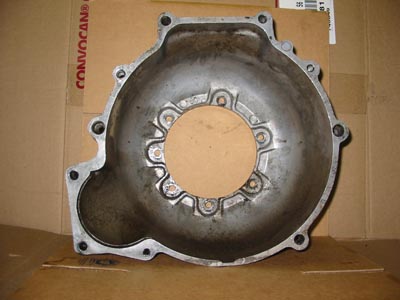

Top bolts on 5-1/8" centers 		RKG 6-3/4" 12-7/16" PP 5-1/8" BC FD-C4F-93-000Y-JM Price
Enlarge
  D42P-7976-AA
74-83 122L4-20 & 140L4-23
No cable boss
3 bolt 800 starter pocket
? flexplate teeth
Small round bell
Top bolts on 5-1/8" centers
Uses three 3/8" starter bolts
Uses 0.600" diameter line up pins
Casting number on bottom of bell 1" from pump
    HOUSING, Converter D4FZ-7976-A
L6 (170)

Same size bolts

Threaded mount

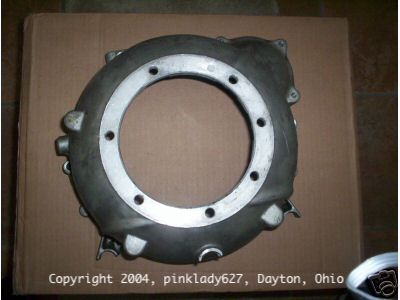

Extra side boss 		GOG 5-15/16" 12-7/16" PP 4-11/16" BC FD-C4F-93-0013-F4 Price
Enlarge
  C4DP-7976-A
64 170L6-28
No cable boss
3-bolt 1030 starter pocket
? flexplate teeth
Small round bell
Top bolts on 4-11/16" centers
Uses three 5/16" starter bolts
Top mounted lever assembly
Extra horizontal bolt opposite starter
L6 (170, 200)

Same size bolts

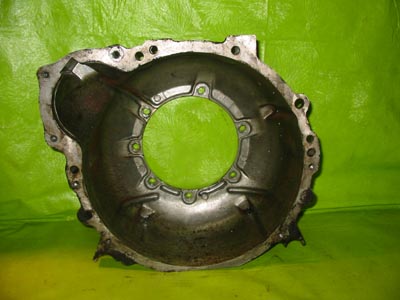

Blank mount 		BRK 5-7/8" 12-7/16" PP 4-11/16" BC FD-C4F-93-001A-G2 Price
Enlarge
  C5GP-7976-A
  170L6-28 & 200L6-33
No cable boss
3 bolt 1030 starter pocket;? flexplate teeth
Small round bell
Top bolts on 4-11/16" centers
Uses three 5/16" starter bolts
NOT drilled for top mounted lever assembly
D8BP-7976-AA may fit by changing starter
L6 (170, 200)

Same size bolts

Thread mount 		LOB 5-7/8" 12-7/16" PP 4-11/16" BC FD-C4F-93-000E-P9 Price
Enlarge
  C5GP-7976-A
65-77 170L6-28 & 200L6-33
No cable boss
3 bolt 1030 starter pocket
? flexplate teeth
Small round bell
Top bolts on 4-11/16" centers
Uses three 5/16" starter bolts
Top mounted lever assembly
D8BP-7976-AA may fit by changing starter and/or drilling holes in top for control lever
    HOUSING, Converter C4TZ-7976-B
L6 (170, 200)

Two bolt sizes

Blank mount 		VOG 6" 12-7/16" PP 4-11/16" BC FD-C4F-93-0019-JJ Price
Enlarge
  D8BP-7976-AA
78-81 200L6-33
No cable boss
3 bolt 1030 starter pocket
? flexplate teeth
Small round bell
Top bolts on 4-11/16" centers
Uses one 5/16" & two 3/8" starter bolts
C2GP-7976-A may fit by changing starter
    HOUSING, Converter D8BZ-7976-B
L6 (200)

Top bolts on 7-1/16" centers

6-3/16" long 		VER 6-3/16" 15-9/16" PP 7-1/16" BC FD-C4F-93-000P-71 Price Picture
not
available
  E1SP-7976-AA
81-83 200L6-33
No cable boss
2 bolt 830 pocket starter
? flexplate teeth (Ford E1BZ-6375-A)
Large round bell
Top bolts on 7-1/16" centers
Will NOT fit 200 CID motors before 1981
    HOUSING, Converter E1BZ-7976-A
L6 (200)

Top bolts on 7-1/16" centers

6-7/8" long 		ROR 6-7/8" 15" PP 7-1/16" BC FD-C4F-93-000W-EH Price Picture
not
available
  E2AP-7976-AA
82-83 200L6-33
Cable boss not drilled
2 bolt 800 starter pocket
? flexplate teeth (Ford E1BZ-6375-A)
Large round bell
Top bolts on 7-1/16" centers
Will NOT fit 200 CID motors before 1981
Deepest bell available for this motor
    HOUSING, Converter E2SZ-7976-A
L6 (223) EGE       FD-C4F-93-0018-GG Price Picture
not
available
  C4AP-7976-C
64 223L6-37, Ford Galaxie
? flexplate teeth
    HOUSING, Converter C4AZ-7976-D
V6 (159, 171)

3/8" top holes

Air cooled 		NY:BVO 6-1/8"   3-3/8" BC FD-C4F-93-000U-8C Price Picture
not
available
  71EG-7976-
72-74 V6-, Air cooled, Capri
No cable boss
2-bolt 400 starter pocket
? flexplate teeth
Narrow high top
Top bolts on 3-3/8" centers
3/8" top holes
    HOUSING, Converter D2RY-7976-A
V6 (159, 171)

3/8" top holes

Oil cooled 		KBB 6-11/16" 13-5/16" PP 3-3/8" BC FD-C4F-93-001E-FA Price Picture
not
available
  D4ZP-7976-BB
74 171V6-28, Oil cooled
No cable boss
2 bolt 400 starter pocket
? flexplate teeth
Narrow high top
Top bolts on 3-3/8" centers
3/8" top holes
D52P-7976-AA may fit
V6 (159, 171)

7/16" top holes 		RBB 6-11/16" 13-5/16" PP 3-3/8" BC FD-C4F-93-000A-F1 Price Picture
not
available
  D52P-7976-AA
75-84 159V6-26 & 171V6-28
No cable boss
2-bolt 400 starter pocket
? flexplate teeth
Narrow high top
Top bolts on 3-3/8" centers
7/16" top bolt holes
D4ZP-7976-BB may fit
    HOUSING, Converter D5FZ-7976-A
V8 (255, 289, 302, 351C, 351W)

L6 (240, 250, 300)

V6 (232)

Case mount

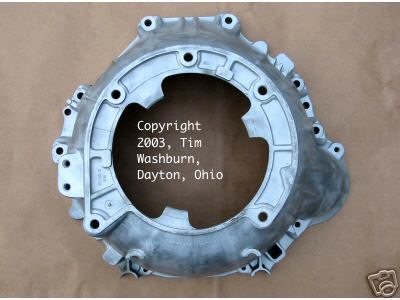

Cable boss 		RRG 6-1/4" 14-15/16" P 5-1/8" BC FD-C4F-93-000J-QM Price
Enlarge
  D2AP-7976-AA
72-77 351WV8-58
With cable boss
2 bolt 800 starter pocket
164 flexplate teeth
6 bolts to small block motor
Top bolts on 5-1/8" centers
Might replace C5AP-7976-B
V8 (255, 289, 302, 351C, 351W)

L6 (240, 250, 300)

V6 (232)

Case mount

Cable boss 		RGK.LN 6-1/4" 14-15/16" P 5-1/8" BC FD-C4F-93-0015-K8 Price Picture
not
available
  D6AP-7976-AA
76-77 351WV8-58
Cable boss
2 bolt 800 starter pocket
164 flexplate teeth
6 bolts to small block motor
Top bolts on 5-1/8" centers
V8 (255, 289, 302, 351C, 351W)

L6 (240, 250, 300)

V6 (232)

Case mount

Cable boss 		BEL 6-1/4" 14-15/16" P 5-1/8" BC FD-C4F-93-0017-EE Price Picture
not
available
  D9AP-7976-BA
79- 302V8-50 & 351WV8-58
With cable boss
2 bolt 800 starter pocket
164 flexplate teeth
6 bolts to small block motor
Top bolts on 5-1/8" centers
D3BP-7976-AA may fit
V8 (255, 289, 302, 351C, 351W)

L6 (240, 250, 300)

V6 (232)

Case mount

Cable boss 		BKG 6-7/8" 14-15/16" P 5-1/8" BC FD-C4F-93-0016-AA Price Picture
not
available
  E2TP-7976-AA
82-86 232V6-38, 255V8-42, 300L6-49, & 302V8-50
With cable boss
2 bolt 830 starter pocket
164 flexplate teeth
6 bolts to small block motor
Top bolts on 5-1/8" centers
Deepest bell available for these and other small block motors
    HOUSING, Converter E2TZ-7976-A
V8 (255, 289, 302, 351C, 351W)

L6 (240, 250, 300)

V6 (232)

Case mount

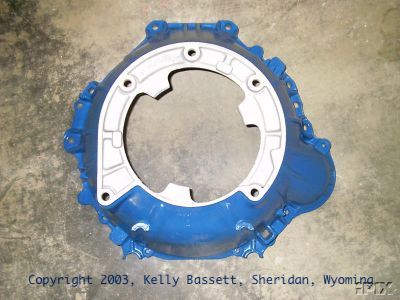

No cable boss 		OVO 6-1/4" 14-15/16" P 5-1/8" BC FD-C4F-93-000H-LH Price
Enlarge
  C5AP-7976-B
65-77 351WV8-58
No cable boss
2 bolt 800 starter pocket
164 flexplate teeth
6 bolts to small block motor
Top bolts on 5-1/8" centers
D2AP-7976-AA may fit
V8 (255, 289, 302, 351C, 351W)

L6 (240, 250, 300)

V6 (232)

Case mount

No cable boss 		GLV 6-1/4" 14-15/16" P 5-1/8" BC FD-C4F-93-0011-90 Price Picture
not
available
  D3BP-7976-AA
73-75 240L6-39, 300L6-49, 302V8-50, & 351WV8-58
No cable boss
2 bolt 800 starter pocket
164 flexplate teeth
6 bolts to small block motor
Top bolts on 5-1/8" centers
    HOUSING, Converter D3BZ-7976-A
V8 (255, 289, 302, 351C, 351W)

L6 (240, 250, 300)

V6 (232)

Case mount

No cable boss 		LLR 6-1/4" 14-15/16" P 5-1/8" BC FD-C4F-93-0012-C2 Price Picture
not
available
  D6TP-7976-AA
76-79 302V8-50 & 351WV8-58
No cable boss
2 bolt 800 starter pocket
164 flexplate teeth
6 bolts to small block motor
Top bolts on 5-1/8" centers
V8 (255, 289, 302, 351C, 351W)

L6 (240, 250, 300)

V6 (232)

Pump mount

141 flexplate teeth 		VRR 5-7/8" 14-15/16" P 5-1/8" BC FD-C4F-93-000N-EW Price Picture
not
available
  D5ZP-7976-AA
75-79 302V8-50
No cable boss
2 bolt 800 starter pocket
?141? flexplate teeth
6 bolts to small block motor
Top bolts on 5-1/8" centers
Uses 10" converter
Mustang II ONLY
    HOUSING, Converter D5ZZ-7976-A
V8 (255, 289, 302, 351C, 351W)

L6 (240, 250, 300)

V6 (232)

Pump mount

157 flexplate teeth

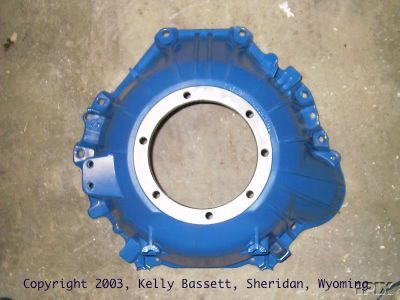

Cable boss 		OLB 5-13/16" 14-15/16" P 5-1/8" BC FD-C4F-93-000G-JF Price
Enlarge
  D2OP-7976-AA
72-77 250L6-41 & 302V8-50
With cable boss
2 bolt 800 starter pocket
157 flexplate teeth
6 bolts to small block motor
Top bolts on 5-1/8" centers
Will replace C5OP-7976-A
    HOUSING, Converter D2OZ-7976-B
V8 (255, 289, 302, 351C, 351W)

L6 (240, 250, 300)

V6 (232)

Pump mount

157 flexplate teeth

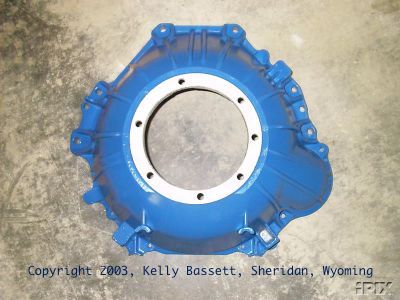

No cable boss 		YGL 5-13/16" 14-15/16" P 5-1/8" BC FD-C4F-93-000F-GC Price
Enlarge
  C5OP-7976-A
65-77 250L6-41 (69-77), 289V8-47 (65-68), 302V8-50 (68-76), & 351WV8-58 (70-71)
No cable boss
2 bolt 800 starter pocket
157 flexplate teeth
6 bolts to small block motor
Top bolts on 5-1/8" centers
D2OP-7976-AA fits
    HOUSING, Converter C5OZ-7976-A
V8 (255, 289, 302, 351C, 351W)

L6 (240, 250, 300)

V6 (232)

Pump mount

164 flexplate teeth

Cable boss 		EYL 6-1/8" 14-15/16" P 5-1/8" BC FD-C4F-93-0010-JX Price Picture
not
available
  D9AP-7976-AA
79-80 302V8-50
With cable boss
2 bolt 800 starter pocket
6 bolts to small block motor
164 flexplate teeth
6 threaded holes on motor side
Top bolts on 5-1/8" centers
D7DP-7976-AA may fit
V8 (255, 289, 302, 351C, 351W)

L6 (240, 250, 300)

V6 (232)

Pump mount

164 flexplate teeth

Cable boss

6-1/8" long 		LYB 6-1/8" 14-15/16" P 5-1/8" BC FD-C4F-93-000L-8R Price Picture
not
available
  D7DP-7976-AA
77-80 250L6-41 & 302V8-50
With cable boss
2 bolt 800 starter pocket
164 flexplate teeth
6 bolts to small block motor
5 threaded holes on motor side
Top bolts on 5-1/8" centers
D9AP-7976-AA will fit
V8 (255, 289, 302, 351C, 351W)

L6 (240, 250, 300)

V6 (232)

Pump mount

164 flexplate teeth

No cable boss

6-1/8" long 		LRR 6-1/8" 14-15/16" P 5-1/8" BC FD-C4F-93-000K-6P Price Picture
not
available
  D7BP-7976-AA
77-81 250L6-41, 255V8-42, & 302V8-50
No cable boss
2 bolt 800 starter pocket
164 flexplate teeth
6 bolts to small block motor
5 threaded holes on motor side
Top bolts on 5-1/8" centers
    HOUSING, Converter D7BZ-7976-A
V8 (255, 289, 302, 351C, 351W)

L6 (240, 250, 300)

V6 (232)

Pump mount

164 flexplate teeth

No cable boss

6-7/8" long 		YKB 6-7/8" 14-15/16" P 5-1/8" BC FD-C4F-93-000X-GK Price Picture
not
available
  E2AP-7976-CA
82-86 232V6-38 & 255V8-42
No cable boss
2-bolt 800 starter pocket
164 flexplate teeth
6 bolts to small block motor
Top bolts on 5-1/8" centers
Deepest bell available for these and other small block motors

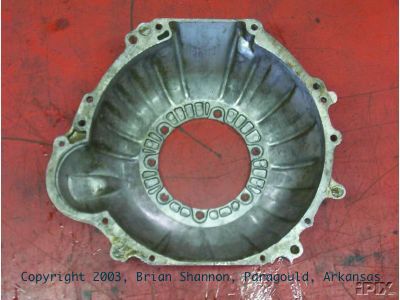

    HOUSING, Converter E2DZ-7976-A
V8 (260, 264, 289)

5 bolts to motor 		GEY.VY 5-13/16" 14-1/2" PP 5-7/8" BC FD-C4F-93-000C-K5 Price
Enlarge
  C4AP-7976-A
64-65 260V8-43, 264V8-44, & 289V8-47
No cable boss
2 bolt 830 starter pocket
160 flexplate teeth
5 bolts to small block motor
Top bolts on 5-7/8" centers
WILL NOT FIT ANY MOTOR AFTER 1965
    HOUSING, Converter C4AZ-7976-A
V8 (351M, 400, 460) LYV 6-1/4" 14-15/16" P 7-11/16" BC FD-C4F-93-000M-AU Price Picture
not
available
  D5OP-7976-BA
75-79 351MV8-58
With cable boss
2-bolt 830 starter pocket
? flexplate teeth
Top bolts on 7-11/16" centers
Fits any Lima big block motor (351MV8-58, 400V8-66, 460V8-75)
    HOUSING, Converter D5OZ-7976-A
  Last updated:  12/02/2025
Master Index


Related items:

D8BZ-7000-AF    TRANSMISSION ASSEMBLY
C5TZ-17285-A
C4AZ-7A153-C    GEAR, Forward Clutch Ring
E2SZ-7A039-B    EXTENSION HOUSING
E1DZ-7000-LA    TRANSMISSION ASSEMBLY
D0DZ-7000-H    TRANSMISSION ASSEMBLY
E2DZ-7060-A    SHAFT, Output
E5SZ-7000-CA
D0UZ-7000-B    TRANSMISSION ASSEMBLY
D2AZ-7A100-F
D0AZ-7A256-A    LEVER
D1AZ-7005-A    CASE, Transmission
D0UZ-7003-D
D6DZ-7000-ABA
D3UZ-7000-DB    TRANSMISSION ASSEMBLY
D2RY-7A100-A    VALVE BODY, Main Control
D7OZ-7C063-A    GOVERNOR ASSEMBLY
D2DZ-7D027-A    COVER, Servo Front
D0ZZ-7A256-A
D0DZ-7A100-A
D8BZ-7A100-C    VALVE BODY, Main Control
D4FZ-7A100-C    VALVE BODY, Main Control
D2DZ-7000-CA
D7OZ-7000-RA
E1AZ-7B066-B    PLATE, Reverse Clutch Pressure
D8ZZ-7000-AB
D4RY-7A100-C    VALVE BODY, Main Control
D0AZ-7D090-A    WASHER, Forward Clutch Hub (Thr
C7SZ-17271-C    GEAR, Speedometer Driven
E0SZ-6375-A    FLYWHEEL & RING GEAR
E3TZ-7060-E    SHAFT, Output
E4SZ-7000-AD
D9BZ-7000-NA
C8UZ-7000-H    TRANSMISSION ASSEMBLY
E3TZ-7060-D    SHAFT, Output
D5BZ-7A100-B    VALVE BODY, Main Control
D7OZ-7C063-B    GOVERNOR ASSEMBLY
C4AZ-6375-B    FLEXPLATE & RING GEAR
D0AZ-7A194-A    OIL PAN
C5ZZ-7A256-A    LEVER
E1AZ-7A115-A    LEVER, Detent
D9BZ-7000-KA    TRANSMISSION ASSEMBLY
D0DZ-7000-B
E1ZZ-7A360-A    CYLINDER, Forward Clutch

Known to fit Ford applications.

Payment 877-771-3372 More parts 877-771-3372 Contact


Unless otherwise indicated, all parts are USED

We have 'millions' of used transmission parts in stock. If we don't list the part you need, please contact us.


We would like to keep this website ad-free. If you find this site useful, a small donation would be appreciated. Please click Gift Box for more information.

Transmission parts for the masses
877-771-3372
8am - 8pm Pacific Time



All content copyright 1984-2025 by mmerlinn.

Inflation Made Simple
  Last update:  12/02/2025
