  Page number:  FD-C4F-591
OUTPUT SHAFT, Rear
47535 parts in stock comprising 18326 unique part numbers from 56042 numbers listed. (12/02/2025)
Style Color
Code		 OA/Thick OD/Deep ID/Wide Our Part Number Price Picture
Tooth Counts ID Marks
Year Miscellaneous Info
Years   Part Info Number
Call 877-771-3372 for current price & availability ( 8am - 8pm Pacific Time )
No threads

6 teeth

1" splines

2 grooves 		OKE 19-15/16"   1" XL FD-C4F-59-00E8-HE Price Picture
not
available
N34A-37A-39A-R6-N28A <>
71-76 6 speedo teeth
Front splines = 1" long
Snap ring grooves = L-M, 2 total
Known to fit short input
    SHAFT, Output D1FZ-7060-A
No threads

7 teeth

7/8" splines 		OEV 19-3/4"     FD-C4F-59-00EA-60 Price Picture
not
available
N34A-37A-39A-R7-N28A <>
  7 speedo teeth
Front splines = 7/8" long
Snap ring grooves = L-M, 2 total
Recessed end
Known to fit long input
No threads

8 teeth

1" splines

1 groove 		OGG 19-15/16"     FD-C4F-59-00E7-FA Price Picture
not
available
N34A-37A-39A-R8-N <>
  8 speedo teeth
Front splines = 1" long
Snap ring grooves = L, 1 total
ID groove = None
Flat end
Known to fit short input
No threads

8 teeth

1" splines

2 grooves 		OBL 19-15/16"     FD-C4F-59-00E3-G2 Price Picture
not
available
N34A-37A-39A-R8-N <>
70-81 8 speedo teeth
Front splines = 1" long
Snap ring grooves = L+M, 2 total
ID groove = None
Flat end
Known to fit short input
No threads

8 teeth

1" splines

2 grooves 		KEV 19-15/16"     FD-C4F-59-00HX-MM Price Picture
not
available
N34A-37A-39A-R8-N28A <D>
82-83 8 speedo teeth
Front splines = 1" long
Snap ring grooves = L+M, 2 total
ID groove = 6-11/16" in
Flat end
    SHAFT, Output E2DZ-7060-A
No threads

8 teeth

1" splines

2 grooves 		OOB 19-15/16"     FD-C4F-59-0098-E0 Price Picture
not
available
N34A-37A-39A-R8-N28A <D>
  8 speedo teeth
Front splines = 1" long
Snap ring grooves = L+M, 2 total
ID groove = 7-9/16" in
Flat end
No threads

9 teeth

1" splines

1 groove 		OVR 19-15/16"     FD-C4F-59-00AQ-JX Price Picture
not
available
N34A-37A-39A-R9-N28A <D>
82-86 9 speedo teeth
Front splines = 1" long
Snap ring grooves =
With snap ring groove to retain governor support
Known to fit short input
    SHAFT, Output E2DZ-7060-B
No threads

9 teeth

1" splines

2 grooves 		BOG 19-15/16"     FD-C4F-59-0097-MX Price Picture
not
available
N34A-37A-39A-R9-N28A <>
77-82 9 speedo teeth
Front splines = 1" long
Snap ring grooves = L-M, 2 total
Flat end
Known to fit short input

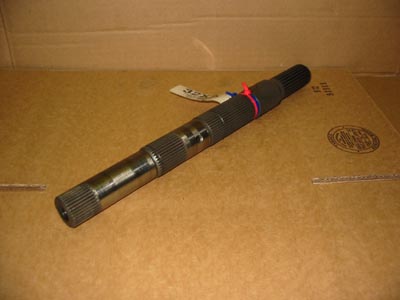

No threads

No speedo

25 splines

Ford 		LRG 13-3/8"     FD-C4F-59-009R-AQ Price
Enlarge
N34A-37A-39A-N25A
83-84 4x4
25 splines
Known to fit E37P-7A040-AA adapter housing, Short input
Ranger, Bronco II
    SHAFT, Output E3TZ-7060-D
Threads

3/4" splines 		YVR 14-13/16"     FD-C4F-59-00A8-N8 Price Picture
not
available
N34A-37A-39A-N28R <>
64 Male threads
Front splines = 3/4" long
Grooves in splines = M, 1 total
Flat end
Known to fit long input
Threads

7/8" splines 		KRB 14-15/16"     FD-C4F-59-00J5-GC Price Picture
not
available
N34A-37A-39A-N28R <>
65-69 Male threads
Front splines = 7/8" long
Snap ring grooves =
Recessed end
Known to fit long input
Threads

1" splines 		KVR 15-1/16"     FD-C4F-59-00H0-NY Price
Enlarge
N34A-37A-39A-N28R <>
70-71 Male threads
Front splines = 1" long
Snap ring grooves = 1
Flat end
Known to fit short input
