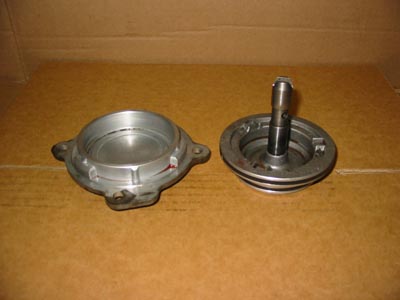

| SERVO ASSEMBLY, Front |
| 47535 parts in stock comprising 18326 unique part numbers from 56042 numbers listed. (12/02/2025) |
| Style |
Color
Code |
OA/Thick |
OD/Deep |
ID/Wide |
Our Part Number |
Price |
Picture |
| Tooth Counts |
ID Marks |
| Year |
Miscellaneous Info |
|
| Years |
|
Part Info |
Number |
|
| Call 877-771-3372 for current price & availability ( 8am - 8pm Pacific Time ) |
|
A
|
BBL
|
|
|
|
FD-C4F-86-000E-KG
|
Price
|
Enlarge
|
| |
C4OP-7D027-A, A {Servo Cover}
C5AP-7D022-B, A {Servo Piston}
|
|
65-80
|
Cover = 2-54/64" bore
Piston = 2-53/64" (2.82") diameter, 3-50/64" (3.78") diameter
Pin = 40/64"
|
|
|
B
|
LOG.NL
|
|
|
|
FD-C4F-86-0003-K8
|
Price
|
not
available
|
| |
C6AP-7D027-B, B {Servo Cover}
C5AP-7D022-A, B {Servo Piston}
|
|
65-83
|
Cover = 2-45/64" (2.71") bore
Piston = 2-44/64" (2.70") diameter, 3-50/64" (3.78") diameter
Pin = 40/64"
|
|
|
C
|
EGV
|
|
|
|
FD-C4F-86-00A7-H3
|
Price
|
not
available
|
| |
C6TP-7D027-A {Servo Cover}
C5TP-7D022-A {Servo Piston}
|
| |
|
|
|
H
|
VVR
|
|
|
|
FD-C4F-86-0007-JJ
|
Price
|
Enlarge
|
| |
C8ZP-7D027-A, H {Servo Cover}
C8ZP-7D022-A, H {Servo Piston}
|
|
68-80
|
Cover = " bore
Piston = 2-61/64" ( ") diameter, 3-50/64" (3.78") diameter
Pin = 40/64"
|
|
|
K
|
LOB
|
|
|
|
FD-C4F-86-000G-PL
|
Price
|
not
available
|
| |
D2DP-7D027-AA, K {Servo Cover}
D2DP-7D022-AA, K {Servo Piston}
|
|
72-74
|
Cover = " bore
Piston = 2-24/64" (2.37") diameter, 3-22/64" (3.35") diameter
Pin = 40/64"
|
|
| |
|
PISTON, Front Servo
|
D2DZ-7D022-A
|
|
| |
|
COVER, Servo Front
|
D2DZ-7D027-A
|
|
|
N
|
EOK
|
|
|
|
FD-C4F-86-000J-9T
|
Price
|
not
available
|
| |
E2AP-7D027-BA, N {Servo Cover}
E2AP-7D022-BA, N {Servo Piston}
|
|
82-86
|
Cover = " bore
Piston = " (2.56") diameter, " (3.75") diameter
Pin = 40/64"
|
|
|
No Letter
|
KYG.NY
|
|
|
|
FD-C4F-86-000C-FA
|
Price
|
not
available
|
| |
C4OP-7D027-A {Servo Cover}
C4OP-7D022-A {Servo Piston}
|
|
64
|
Cover = 2-54/64" bore
Piston = 2-53/64" (2.82") diameter, 3-50/64" (3.78") diameter
Pin = 32/64"
Nothing else fits
|
|
|
O
|
VRR
|
|
|
|
FD-C4F-86-000K-CV
|
Price
|
not
available
|
| |
E2TP-7D027-AA, O {Servo Cover}
E2TP-7D022-AA, O {Servo Piston}
|
|
82-86
|
Cover = " bore
Piston = " (2.44") diameter, 3-50/64" (3.78") diameter
Pin = 40/64"
|
|
|
R
|
BOE
|
|
|
|
FD-C4F-86-000L-FX
|
Price
|
Enlarge
|
| |
D0AP-7D027-A, R {Servo Cover}
D0AP-7D022-A, R {Servo Piston}
|
|
|
Cover = 3-18/64" bore, 2-54/64" bore
Piston = 2-53/64" (2.83") diameter, 3-17/64" (3.27") diameter
Pin = 40/64"
|
|
|
W
|
RYB
|
|
|
|
FD-C4F-86-0009-CN
|
Price
|
not
available
|
| |
C6DP-7D027-A, W {Servo Cover}
C5OP-7D022-A, W {Servo Piston}
|
|
65-
|
Cover = " bore
Piston = " (2.38") diameter, " (3.30") diameter
Pin = 40/64"
|
|
|
Y
|
LBY
|
|
|
|
FD-C4F-86-0013-L9
|
Price
|
not
available
|
| |
C6FP-7D027-A, Y {Servo Cover}
C5FP-7D022-A, Y {Servo Piston}
|
| |
Cover = " bore
Piston = " (2.20") diameter, " (3.24") diameter
Pin = 40/64"
|
|
|
Z
|
VKV
|
|
|
|
FD-C4F-86-007C-NK
|
Price
|
not
available
|
| |
C4AP-7D027-B, Z {Servo Cover}
C5DP-7D022-A, Z {Servo Piston}
|
|
|
Cover = 3-21/64" & 2-31/64" bores
Piston = 2-31/64" (2.48") diameter, 3-21/64" (3.33") diameter
Pin = 40/64"
|
|
| |
|
PISTON, Front Servo
|
C5OZ-7D022-A
|
|
|
Z
|
GNE
|
|
|
|
FD-C4F-86-0002-H6
|
Price
|
not
available
|
| |
C6DP-7D027-B, Z {Servo Cover}
C5DP-7D022-A, Z {Servo Piston}
|
|
|
Cover = 3-21/64" & 2-31/64" bores
Piston = 2-31/64" (2.48") diameter, 3-21/64" (3.33") diameter
Pin = 40/64"
|
|
| |
|
SERVO, Cover (Front)
|
C4AZ-7A027-G
|
|
| |
|
PISTON, Front Servo
|
C5OZ-7D022-A
|
|
