  Page number:  FD-C6F-211

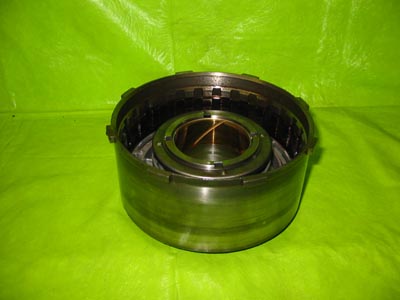

DRUM, Direct Clutch
47561 parts in stock comprising 18337 unique part numbers from 56101 numbers listed. (12/05/2025)
Style Color
Code		 OA/Thick OD/Deep ID/Wide Our Part Number Price Picture
Tooth Counts ID Marks
Year Miscellaneous Info
Years   Part Info Number
Call 877-771-3372 for current price & availability ( 8am - 8pm Pacific Time )
1 ring groove

3 frictions 		OKY       FD-C6F-21-0029-H6 Price Picture
not
available
  <>
69-96 3 pack
No grooves on lugs
1 snap ring groove
No checkball
1-12/64" lip
Factory cut
    DRUM, Intermediate Brake C9AZ-7D044-A
1 ring groove

4 frictions 		OBR 3-55/64"     FD-C6F-21-00PH-E6 Price Picture
not
available
  <A> C8OP-7D045-B1
  4-pack
1 groove on lugs
1 snap ring groove, 1-1/64" lip
Factory cut
Cobra Jet
1 ring groove

4 frictions 		KRE.F307       FD-C6F-21-0028-F4 Price
Enlarge
  <A>
69-96 4 pack
1 groove on lugs
1 snap ring groove, 1-1/64" lip
Factory cut
No casting number
    DRUM, Intermediate Brake C9SZ-7D044-A
1 ring groove

5 frictions 		        FD-C6F-21-002F-G2 Price Picture
not
available
  <AA>
  5 pack
2 grooves on lugs
1 snap ring grooves
Factory cut
2 ring grooves

3 or 4 friction 		BKB       FD-C6F-21-00CY-HW Price Picture
not
available
  <>
  3 pack
No grooves on lugs
2 snap ring grooves
Factory cut
2 ring grooves

3 or 4 frictions 		        FD-C6F-21-002A-FQ Price Picture
not
available
  <>
  3/4 pack
No grooves on lugs
2 snap ring grooves
Aftermarket cut
2 ring grooves

3 or 4 frictions 		        FD-C6F-21-002C-KV Price Picture
not
available
  <A>
  3/4 pack
1 groove on lugs
2 snap ring grooves
Factory cut
2 ring grooves

3 or 5 frictions 		        FD-C6F-21-002E-E0 Price Picture
not
available
  <>
  3/5 pack
No grooves on lugs
2 snap ring grooves
Aftermarket cut
2 ring grooves

4 or 5 frictions 		        FD-C6F-21-002G-J4 Price Picture
not
available
  <A>
  4/5 pack
1 groove on lugs
2 snap ring grooves
Aftermarket cut
2 ring grooves

4 or 5 frictions 		        FD-C6F-21-002H-L6 Price Picture
not
available
  <AA>
  4/5 pack
2 grooves on lugs
2 snap ring grooves
Factory cut
