  Page number:  GM-640-920
EXTENSION HOUSING
47535 parts in stock comprising 18326 unique part numbers from 56042 numbers listed. (12/02/2025)
Style Color
Code		 OA/Thick OD/Deep ID/Wide Our Part Number Price Picture
Tooth Counts ID Marks
Year Miscellaneous Info
Years   Part Info Number
Call 877-771-3372 for current price & availability ( 8am - 8pm Pacific Time )
9-1/2" long

B casting 		YBB 9-1/2"     GM-640-92-00AU-GV Price Picture
not
available
  8626373, B
  Mount = Bottom, 2 bolts, American threads
Damper boss
Known to fit 15" output
9-1/2" long

D casting 		RRB 9-1/2"     GM-640-92-00A0-EE Price
Enlarge
  8626142, D
  Mount = Bottom, 2 bolts, American threads
No damper holes
9-1/2" long

Small bushing

3-1/8" diameter 		RLB 9-1/2"     GM-640-92-00AJ-A4 Price Picture
not
available
  8627402, 375-THM
  TH375C
American bolts
Bore = 1-1/2"
3-1/8" diameter by seal
9-1/2" long

Small bushing

3-3/16" diameter 		LOB 9-1/2"     GM-640-92-00C2-LL Price Picture
not
available
  8655180
  TH375C
Metric bolts
3-3/16" diameter by seal
4" long

C casting

American 		OBB 4"     GM-640-92-006R-H9 Price
Enlarge
  8624486, C
  Large bushing
Mount = Bottom, 4-5/16" span, 3/8" NC American threads
Bore - 1-57/64"
    HOUSING, Extension Housing AAU6603
AAU006603
4" long

C casting

Metric 		RRR 4"     GM-640-92-00KE-A4 Price Picture
not
available
  8624486, C
  Large bushing
Mount = Bottom, 4-1/4" span, 10mm threads
Bore = 1-57/64"
    HOUSING, Extension AAA6603
4" long

Small bushing 		KBY 4"     GM-640-92-0098-CN Price Picture
not
available
  8623214
  Small bushing
American threads
13-9/16" long

Large bushing

Blank 		OGB 13-9/16"     GM-640-92-0097-LL Price
Enlarge
  8625754
  Cadillac
Blank boss
2 bushings, Approx 1.8" bore
13-9/16" long

Large bushing

Threads 		RVO 13-9/16"     GM-640-92-0119-JJ Price Picture
not
available
  8625754
  Cadillac
Threaded boss
2 bushings, Approx 1.8" bore

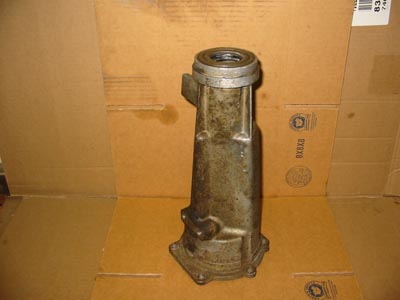

13-9/16" long

Small bushing 		YBL 13-9/16"     GM-640-92-00AE-9T Price
Enlarge
  8623446
65-67 Cadillac
Small bushing
Threaded boss
