  Page number:  FD-C8F-861
SERVO ASSEMBLY, Rear
Call 877-771-3372 for current price & availability ( 8am - 8pm Pacific Time )
Style Color
Code		 OA/Thick OD/Deep ID/Wide Our Part Number Price Picture
Tooth Counts ID Marks
Year Miscellaneous Info
Years   Part Info Number
Call 877-771-3372 for current price & availability ( 8am - 8pm Pacific Time )
  VBK       FD-C8F-86-0011-G5 Price Picture
not
available

  Adjustable
10-03-234-902 EOR       FD-C8F-86-002K-FX Price Picture
not
available
  10-03-234-902
74
7B-130A VGO       FD-C8F-86-002L-60 Price Picture
not
available
  7B-130A
74
C8AP-7B173-B

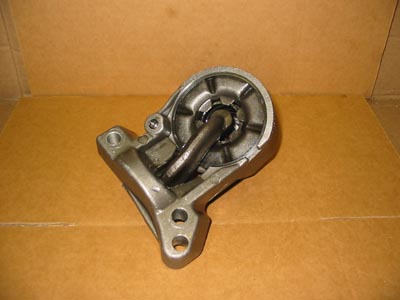

No screw 		VYB       FD-C8F-86-0012-J7 Price
Enlarge
  C8AP-7B173-B {Servo Housing}
D2ZP-7A266-AB {Servo Piston}
STEEL, 1B, M {Servo Arm}
  Non-Adjustable
No screw
C8AP-7B173-B

No screw 		VOO       FD-C8F-86-007H-EW Price Picture
not
available
  C8AP-7B173-B {Servo Housing}
C9AP-7A266-B {Servo Piston}
PAK-77410-A, STEEL {Servo Arm}
  Non-Adjustable
No screw
No servo pin
Steel piston inside aluminum piston
Retainer plate = Steel, Raised lip, 2 wide slots
C8AP-7B173-B

No screw 		BLL       FD-C8F-86-007J-71 Price Picture
not
available
  C8AP-7B173-B {Servo Housing}
D2AP-7A266-AB {Servo Piston}
STEEL, D2AP-7A166-AA {Servo Arm}
  Non-Adjustable
No screw
Servo pin = Press fit steel
Retaining plate = Steel with 6 deep ribs
    BODY, Rear Servo C8AZ-7B172-B
    PISTON, Rear Servo D3AZ-7A266-B
C8AP-7B173-B

Screw 		KVL       FD-C8F-86-0080-AA Price Picture
not
available
  C8AP-7B173-B {Servo Housing}
  Adjustable
Screw
Press fit servo pin
Piston = Aluminum with internal steel
Retaining plate = Steel with 2 wide slots
  Last updated:  02/06/2025
