| SUN SHAFT, Main | |||||||
|---|---|---|---|---|---|---|---|
| 47523 parts in stock comprising 18320 unique part numbers from 56001 numbers listed. (11/26/2025) | |||||||
| Style | Color Code |
OA/Thick | OD/Deep | ID/Wide | Our Part Number | Price | Picture |
| Tooth Counts | ID Marks | ||||||
| Year | Miscellaneous Info | ||||||
| Years | Part Info | Number | |||||
| Call 877-771-3372 for current price & availability ( 8am - 8pm Pacific Time ) | |||||||

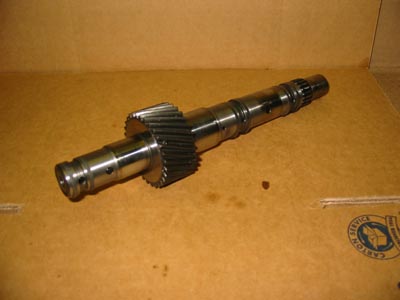

| 30 teeth | RYR.F3O7 | 10-3/8" | 2-13/64" | 1-11/64" XT | FD-C8F-5V-0000-93 | Price |
 Enlarge |
| PN20A-R30P | <> | ||||||
| 68-77 |
Big journal = Gear = , 1-11/64" wide, step diameter Bearing to planet Thrust washer to outer sun gear Beveled tip |
||||||
| 30 teeth | LRR | 10-3/8" | 2-13/64" | 1-19/64" XW | FD-C8F-5V-000E-HH | Price |
Picture not available |
| PN20A-R30P | <> | ||||||
|
Big journal = Gear = , 1-19/64" wide, step diameter Bearing to planet Thrust washer to outer sun gear |
|||||||
| 30 teeth | ELK | 10-5/16" | 2-15/64" | 1-9/64" XW | FD-C8F-5V-0001-C5 | Price |
Enlarge |
| PN20A-R30P | <> | ||||||
| 78-81 |
Big journal = 1-16/64" Gear = Steps both sides, 1-5/64" wide, 1-55/64" step diameter Bearing to planet Thrust washer to outer sun gear |
||||||
| GEAR, Sun | D8AZ-7A399-A | ||||||
|
Related items: C8AZ-7B066-A PLATE, Front Clutch Pressure C8AZ-7B066-B PLATE, Front Clutch Pressure D2AZ-7019-A WASHER, Input Shaft (Thrust) D8OZ-7000-AA C8AZ-7B067-A HUB, Front Clutch D3AZ-7C096-A WASHER KIT, Sun Gear D3AZ-7C035-A GOVERNOR ASSEMBLY D4OZ-7000-BA D9OZ-7000-NA TRANSMISSION ASSEMBLY D5OZ-7A039-A EXTENSION HOUSING D1AZ-7A398-B PLANET ASSEMBLY D6AZ-7005-A CASE, Transmission D0TZ-7A256-B LEVER ASSY, Manual Control C8AZ-7A108-A SUPPORT, Stator E0AZ-7005-B CASE, Transmission C8AZ-7005-E CASE, Transmission D5OP-7000-ABA D1AZ-7A262-A PISTON, Reverse Clutch C1AZ-7A172-A STRUT, Rear Servo Band D3OZ-7100-G MAIN CONTROL ASSY C0AZ-7015-C SHAFT, Input C8AZ-7A103-A PUMP, Front D8AZ-7000-GA TRANSMISSION ASSEMBLY C9AZ-7A158-A STRUT, Front Servo Band D5OZ-7000-ABA D3TZ-7A256-B LEVER ASSY, Manual Control D7AZ-7A100-E VALVE BODY, Main Control C5AZ-7A385-E WASHER, Output Shaft (Selective C9TZ-7A256-B LEVER ASSY, Manual Control D5TZ-7000-AGA D0ZZ-7D157-A PISTON, Rear Clutch B5SZ-7A176-B BAND, Rear Servo C8AZ-7005-A CASE, Transmission D2ZZ-7A039-A EXTENSION HOUSING D8AZ-7B368-A BEARING, Output Shaft Rear D0ZZ-7976-A HOUSING, Converter D2ZZ-7000-FA C0AP-7B070-A SPRING, Front Clutch Piston |
| Known to fit Ford applications. |
| Payment | 877-771-3372 | More parts | 877-771-3372 | Contact |
| We have 'millions' of used transmission parts in stock. If we don't list the part you need, please contact us. |
