| PUMP ASSEMBLY, Main | |||||||
|---|---|---|---|---|---|---|---|
| 47523 parts in stock comprising 18320 unique part numbers from 56001 numbers listed. (11/26/2025) | |||||||
| Style | Color Code |
OA/Thick | OD/Deep | ID/Wide | Our Part Number | Price | Picture |
| Tooth Counts | ID Marks | ||||||
| Year | Miscellaneous Info | ||||||
| Years | Part Info | Number | |||||
| Call 877-771-3372 for current price & availability ( 8am - 8pm Pacific Time ) | |||||||
| 2-44/64" splines | KLE | 4-56/64" | 5-56/64" | FD-C8F-14-001M-5N | Price |

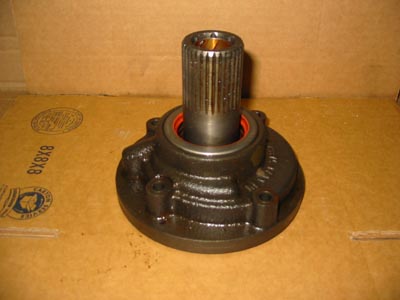

 Enlarge |
|
| N32A | C8AP-7A105-A {Pump Body} | ||||||
| 68-81 |
Straight cut gears 1 screw Inner rotor tits Known to fit 29 input splines |
||||||
| PUMP, Front | C8AZ-7A103-A | ||||||
|
56/64" splines 17 input splines |
K413 | FD-C8F-14-008A-H3 | Price |
Picture not available |
|||
| 3-60C {Pump Body} | |||||||
|
Angle cut gears 1 screw Inner rotor tits Bushing Known to fit 17 input splines |
|||||||
|
56/64" splines 29 input splines |
EBB | 4-15/16" | 5-56/64" | FD-C8F-14-007R-E6 | Price |
Picture not available |
|
| 3-60C {Pump Body} | |||||||
| 74 |
Pump body = 1 screw Stator support = 25/64" bushing journal, 60/64" bore Gears = 27x33 angle teeth, 44/64" thick, 2 tits, Bushing Known to fit 29 input splines |
||||||
|
Related items: D2ZZ-7000-FA D1AZ-7A262-A PISTON, Reverse Clutch C5TZ-7060-A OUTPUT SHAFT D1AZ-7A398-B PLANET ASSEMBLY D3AZ-7000-HA C8AZ-7B067-A HUB, Front Clutch D8OZ-7060-A SHAFT, Output D2OZ-7976-A HOUSING, Converter C1TZ-7A039-A EXTENSION HOUSING C9TZ-7A256-B LEVER ASSY, Manual Control D5OZ-7000-ABA D0ZZ-7D157-A PISTON, Rear Clutch C8AZ-7A194-A OIL PAN D3OZ-7100-G MAIN CONTROL ASSY C8AZ-7005-E CASE, Transmission D3AZ-7C035-A GOVERNOR ASSEMBLY D2AZ-7003-NA D7AZ-7A100-E VALVE BODY, Main Control C0AZ-7015-C SHAFT, Input C8AZ-7B066-A PLATE, Front Clutch Pressure D0TZ-7A256-B LEVER ASSY, Manual Control C8AZ-7A103-A PUMP, Front C9AZ-7A164-A PISTON, Front Servo C9AZ-7A039-C D2AZ-7360-C CYLINDER, Front Clutch B5S-77577-B WASHER, Front Clutch Hub (Thrus D9OZ-7000-NA TRANSMISSION ASSEMBLY B1AZ-7A166-A WASHER, Rr Clutch Sun (Outer) D3AZ-7A266-B PISTON, Rear Servo E0AZ-7005-B CASE, Transmission D8AZ-7060-A OUTPUT SHAFT C9AZ-7A269-A GUIDE, Front Servo Piston B5SZ-7A176-B BAND, Rear Servo C3AZ-7A089-A CLUTCH KIT, Planetary Overrunning D1AZ-7A153-A GEAR, Park Brake D3AZ-7C096-A WASHER KIT, Sun Gear D4OZ-7000-BA |
| Known to fit Ford applications. |
