  Page number:  FD-D4F-5l0
OUTPUT SHAFT
47083 parts in stock comprising 18124 different part numbers out of 55626 listed. (09/03/2025)
Style Color
Code		 OA/Thick OD/Deep ID/Wide Our Part Number Price Picture
Tooth Counts ID Marks
Year Miscellaneous Info
Years   Part Info Number
Call 877-771-3372 for current price & availability ( 8am - 8pm Pacific Time )
13-7/8" long

Bearing 		KLK.KO 13-7/8"     FD-D4F-5L-000U-LW Price Picture
not
available
N28A-31A-34A-25A <>
90-95 4x4
Has bearing for OD support
No lube holes
    SHAFT, Output F0TZ-7060-D
XL2Z-7060-BA

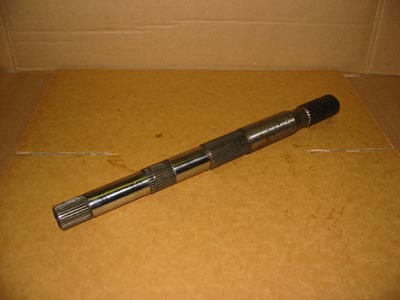

13-7/8" long

Bushing 		KKL 13-7/8"     FD-D4F-5L-003L-EE Price
Enlarge
N28A-31A-34A-25A <>
85-89 4x4, Has bushing for OD support
3 lube holes
    OUTPUT SHAFT E5TZ-7060-A
19-5/64" long

6 teeth

Bearing 		RGL.OO 19-5/64"     FD-D4F-5L-0072-9T Price Picture
not
available
N28A-31A-34A-R6-N25A <6>
  Rwd
6 speedo teeth
Spline grooves = L, 1 total
Has bearing for OD support
Speedo 12" back
    SHAFT, Output F0TZ-7060-A
19-5/64" long

6 teeth

Bushing 		KLL 19-5/64"     FD-D4F-5L-009N-FQ Price Picture
not
available
N28A-31A-34A-R6-N25A <6>
  6 speedo teeth
Has bushing for OD support
Speedo 6-13/16" in
    SHAFT, Output E5TZ-7060-B
19-5/64" long

6 teeth

Pin hole 		GVV 19-5/64"     FD-D4F-5L-007W-N8 Price Picture
not
available
N28A-31A-34A-R6-N25A <>
  6 speedo teeth
Governor pin hole
Speedo 5-1/4" in
    SHAFT, Output D4ZZ-7060-A
19-5/64" long

7 teeth

Bearing 		W397.KEY 19-5/64"     FD-D4F-5L-008W-P9 Price Picture
not
available
N28A-31A-34A-R7-N25A <7>
  7 speedo teeth
Has bearing for OD support
Speedo 7" in
    SHAFT, Output F0TZ-7060-C
19-5/64" long

7 teeth

No hole 		BRO 19-5/64"     FD-D4F-5L-00GM-J4 Price Picture
not
available
N28A-31A-34A-R7-N25A <>
  7 speedo teeth
No governor pin hole
Speedo = 12" back, 7" in
Known to fit 74DT-7A041-BE, 78DT-7A041-AA tail housings
    SHAFT, Output D9ZZ-7060-A
19-5/64" long

? tooth speedo

Bushing

Merkur Scorpio only 		OEK 19-5/64"     FD-D4F-5L-00A3-E6 Price Picture
not
available
N28A-31A-34A-R.-N25A
  ? tooth speedo
Has bushing for OD support?
Speedo about 5-1/2" in
  Last updated:  09/03/2025
