| GALAXY SUPPORT (Ring Gear Support), Front | |||||||
|---|---|---|---|---|---|---|---|
| Call 877-771-3372 for current price & availability ( 8am - 8pm Pacific Time ) | |||||||
| Style | Color Code |
OA/Thick | OD/Deep | ID/Wide | Our Part Number | Price | Picture |
| Tooth Counts | ID Marks | ||||||
| Year | Miscellaneous Info | ||||||
| Years | Part Info | Number | |||||
| Call 877-771-3372 for current price & availability ( 8am - 8pm Pacific Time ) | |||||||
|
Machined Flat |
VYV | 31/64" | 1-32/64" | FD-D4F-26-0024-H6 | Price |
Picture not available |
|
| R57A | <> | ||||||
|
Machined steel Bore = 1-1/2", No bushing Flat inside Known to fit aluminum planet with snap ring |
|||||||
| HUB, Forward Clutch | D4ZZ-7B067-A | ||||||
|
Machined Recessed |
RYL | 32/64" | 3-21/64" | 1-32/64" | FD-D4F-26-002G-KG | Price |
Picture not available |
| R57A | <> | ||||||
|
Machined steel 1-32/64" bore Recessed inside No bushing Known to fit aluminum planet with snap ring |
|||||||
| HUB, Forward Ring Gear | E5TZ-7B067-A | ||||||
|
Machined Recessed |
EBO | 32/64" | 1-32/64" | FD-D4F-26-002V-CG | Price |
Picture not available |
|
| R57A | <> | ||||||
|
Machined steel 1-1/2" bore Recessed inside No bushing around planet snout Used with aluminum planet with snap ring |
|||||||
| HUB, Forward Ring Gear |
E7TZ-7B067-A F87Z-7B067-AC |
||||||

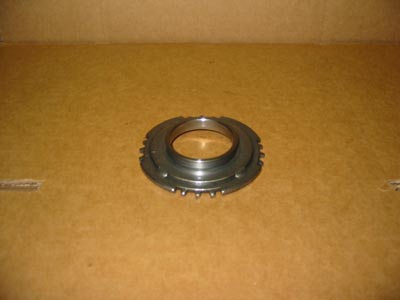

| Stamped | KYG | 1-37/64" | FD-D4F-26-0013-E3 | Price |
 Enlarge |
||
| S57A12 | <> | ||||||
|
Stamped steel 1-37/64" bore Uses bushing around planet snout |
|||||||
| HUB, Forward Ring Gear |
E7TZ-7B067-A F87Z-7B067-AC |
||||||
|
Related items: D8ZZ-7D220-A BODY, Gov Oil Collector E6TZ-7A247-A SWITCH, Neutral Safety E5TZ-7A039-B EXTENSION HOUSING E8TZ-7A103-A SUPPORT, Front Pump E5TZ-7A256-A LEVER, Manual Control E6TZ-7A194-B 91GT-7000-NBC E7SZ-7D006-C PLANETARY KIT, Rear D4ZZ-7B066-B PLATE, Reverse Clutch Pressure F0TZ-7D164-B HUB E5TZ-7A130-A SUPPORT, Center F0TZ-7D044-B DRUM, Intermediate Brake D5RY-7576-B HOUSING, Converter C8SZ-17271-B GEAR, Speedometer Driven F5TZ-7A103-B SUPPORT, Front Pump D6RY-7A247-B SWITCH, Neutral Safety E5TZ-7A153-A RING GEAR, Overdrive E5TZ-7005-B CASE, Transmission F0TZ-7A360-B CYLINDER, Forward Clutch E99Z-7B446-A CARRIER, Planetary E5TZ-7D064-A SHELL, Input E0ZZ-7A262-A PISTON, Reverse Clutch 93GY-7000-SBA 93GT-7000-ADD TRANSMISSION ASSEMBLY 93GT-7000-SAA D4ZZ-7005-B CASE, Transmission F0TZ-7A360-A CYLINDER, Forward Clutch E3ZZ-7D095-A BAND, Reverse Servo 93GT-7000-GBA 87GT-7000-DAC E5TZ-7L669-A DRUM, Overdrive Brake E5RY-7A039-B EXTENSION HOUSING 93GT-7000-GAA TRANSMISSION ASSEMBLY F0TZ-7A039-B HOUSING, Extension E9TZ-7A100-F VALVE BODY, Main Control F0TZ-7017-D INPUT SHAFT 87GT-7000-HAE E7SZ-7D006-A PLANETARY ASSEMBLY, Reverse E8TZ-7A398-A PLANET ASSEMBLY, Forward E8RY-7000-A TRANSMISSION ASSEMBLY 83DT-7000-DLC F0TZ-7L669-A DRUM, Overdrive Brake E7SZ-7D006-B PLANETARY ASSEMBLY, Reverse 91GT-7000-MUA E5TZ-7D044-E DRUM, Intermediate Brake D8ZZ-7D044-C DRUM, Intermediate Brake |
| Known to fit Ford applications. |
