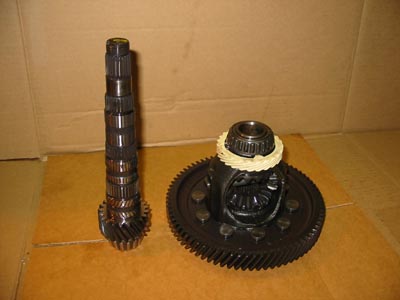

| GEAR SET, Ring & Pinion |
| 47285 parts in stock comprising 18192 unique part numbers from 55753 numbers listed. (10/05/2025) |
| Style |
Color
Code |
OA/Thick |
OD/Deep |
ID/Wide |
Our Part Number |
Price |
Picture |
| Tooth Counts |
ID Marks |
| Year |
Miscellaneous Info |
|
| Years |
|
Part Info |
Number |
|
| Call 877-771-3372 for current price & availability ( 8am - 8pm Pacific Time ) |
75x18 teeth
9-3/4" shaft
|
|
|
|
|
TK-SFX-JT-00K9-K5
|
Price
|
not
available
|
R75 {Ring Gear}
L18 {Pinion}
|
<> {Ring Gear}
<> {Pinion}
|
|
|
Ring gear riveted to spider assembly
Ratio = 4.17
speedo
|
|
|
75x22 teeth
|
X562
|
9-3/4"
|
|
|
TK-SFX-JT-000P-LT
|
Price
|
Enlarge
|
R75 {Ring Gear}
L22 {Pinion}
|
<KK> {Ring Gear}
<OO> {Pinion}
|
|
|
Ratio = 3.40
Ring gear = Riveted
Pinion =
White speedo
|
|
| |
|
|
F0CZ-7061-B
|
|
76x21 teeth
4 spline sets
|
F791
|
9-3/4"
|
|
|
TK-SFX-JT-002K-MJ
|
Price
|
Enlarge
|
R76 {Ring Gear}
L21 {Pinion}
|
<K> {Ring Gear}
<O> {Pinion}
|
|
|
Ratio = 3.62
Ring gear = Riveted
Pinion = 4 spline sets
Speedo = White
|
|
| |
|
OUTPUT SHAFT
|
F0CZ-7061-A
|
|
76x21 teeth
4 spline sets
|
F562
|
9-3/4"
|
|
|
TK-SFX-JT-0032-HW
|
Price
|
Enlarge
|
R76 {Ring Gear}
L21 {Pinion}
|
<KKKK> {Ring Gear}
<OOOO> {Pinion}
|
|
|
Ratio = 3.62
Ring gear = Riveted
Pinion = 4 spline sets
White speedo
|
|
| |
|
CASE, Differential
|
F2CZ-4026-A
|
|
| |
|
OUTPUT SHAFT
|
F4CZ-7061-A
|
|
|
78x19 teeth
|
X562
|
9-3/4"
|
|
|
TK-SFX-JT-002J-KG
|
Price
|
Enlarge
|
R78, RIVETED {Ring Gear}
L19 {Pinion}
|
<K> {Ring Gear}
<O> {Pinion}
|
| |
Ratio = 4.10
Ring gear riveted to spider assembly
White speedo
|
|
| |
|
|
F520-17-301
|
|
|
78x19 teeth
|
X562
|
|
|
|
TK-SFX-JT-005Y-GK
|
Price
|
not
available
|
R78, RIVETED {Ring Gear}
L19 {Pinion}
|
<KKK> {Ring Gear}
<III> {Pinion}
|
|
|
Ratio = 4.10
Ring gear = Riveted
Bore = 1/64"
White speedo
|
|
| |
|
RING GEAR
|
F0Y8-27-180
|
|
| |
|
GEAR, Second Shaft
|
F5D3-17-301
|
|
78x19 teeth
4 spline sets
|
ERV
|
9-3/4"
|
|
|
TK-SFX-JT-00JH-A4
|
Price
|
not
available
|
R78 {Ring Gear}
L19 {Pinion}
|
<KK> {Ring Gear}
<> {Pinion}
|
|
|
Ratio = 4.10
Ring gear = Riveted
Pinion = 4 spline sets
Speedo = White
|
|
| |
|
COUNTERSHAFT
|
0F520-17-301
|
|
| |
|
CASE, Differential
|
0K20N-27-180B
|
|
|
79x18 teeth
|
|
|
|
|
TK-SFX-JT-006Y-HL
|
Price
|
not
available
|
R79-8H {Ring Gear}
L18 {Pinion}
|
<> {Ring Gear}
<> {Pinion}
|
|
|
|
|
Related items:
F520-17-404B FORK, Shift
0F521-17-260B CLUTCH ASSY, 1st & 2nd
F2D2-17-611A GEAR, 5th
F0JY-7107-A RING, Synchronizer Blocking
F0JY-7124-A SYNCHRONIZER ASSEMBLY, 1st & 2nd
0F522-17-611 GEAR, 5th Speed
B311-16-520A FORK, Clutch Release
E7GZ-7105-B HUB, Synchronizer
0F520-17-231 GEAR, 3rd Speed (Mainshaft)
F0JY-7B340-A GEAR, 3rd Speed
0F520-17-301 COUNTERSHAFT
F4CZ-7105-A HUB, Synchronizer, 5th & Rev
F0JY-7N170-A NUT, Retaining (Selective)
0K202-17-100 CASE, Transmission
0F522-17-211B GEAR, 4th Speed
F0JY-7017-A INPUT SHAFT
F1CZ-9E731-A SENSOR, Speed
F521-17-201F GEAR, Mainshaft
F501-17-625 RING, Synchronizer
F5D3-17-301 GEAR, Second Shaft
0F520-17-245A RING, Synchronizer Blocking
F5C3-17-620E HUB SET, 5th & Reverse
F0CZ-7515-A FORK, Clutch Release
F0JY-7100-A GEAR, 1st Speed
F0CZ-7K316-A GEAR, 5th Speed
0F520-17-305 GEAR ASSY, 3rd Speed (Countershaft
F512-17-201A GEAR, Main Drive
F521-17-251B GEAR, 2nd
F0CZ-7A199-A GEAR, 4th Speed Secondary
F0CZ-7005-A HOUSING, Clutch
E7GZ-7106-B SLEEVE, Synchronizer, 5th
F5E1-17-305 GEAR, Second Shaft 3rd
E7GZ-7105-A HUB, Synchronizer
F0JY-4005-E HOUSING, Transaxle
|
|
|
|
Known to fit Ford, Mazda, Kia applications.
|
