  Page number:  TY-W40-4y0
GEAR, Cluster (Countershaft)
47561 parts in stock comprising 18337 unique part numbers from 56101 numbers listed. (12/05/2025)
Style Color
Code		 OA/Thick OD/Deep ID/Wide Our Part Number Price Picture
Tooth Counts ID Marks
Year Miscellaneous Info
Years   Part Info Number
Call 877-771-3372 for current price & availability ( 8am - 8pm Pacific Time )
4-speed

29-26-22-14-15 teeth 		OLR 8-15/16" 3-47/64"   TY-W40-4Y-0084-ET Price Picture
not
available
R29-26-22-14-15 <>
73-80 W40
Input = 20 teeth
3rd mainshaft = teeth
2nd mainshaft = teeth
1st mainshaft = teeth
Snap ring
4-speed

30-26-22-14-15 teeth 		EBG 8-15/16"     TY-W40-4Y-00A9-FF Price Picture
not
available
R30-26-22-14-15 <A>
  Snap ring
Input = 19 teeth
    GEAR, Counter (Cluster) 33421-31010
5-speed

29-26-22-14 teeth

18 splines 		OYO 13" 3-41/64" 41/64" XW TY-W40-4Y-0066-GV Price Picture
not
available
R29-26-22-14-N18A <M>
82-86 W42, W52
Input = 20 teeth
3rd mainshaft = 25 teeth
2nd mainshaft = 31 teeth
1st mainshaft = 35 teeth
18 splines
Snap ring

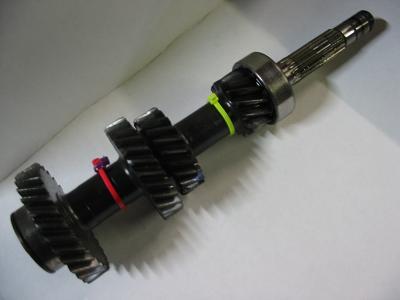

    GEAR, Counter (Cluster) 33421-20060
5-speed

29-26-22-14 teeth

18 splines 		LKV 13" 3-41/64" 41/64" XW TY-W40-4Y-00MG-KR Price
Enlarge
R29-26-22-14-N18A <>
  W42, W52
Input = 20 teeth <L>
3rd mainshaft = 25 teeth
2nd mainshaft = 31 teeth
1st mainshaft = 35 teeth
18 splines
Snap ring
    GEAR, Counter (Cluster) 33421-20060
5-speed

29-26-22-15 teeth

20 splines 		OEG 13"     TY-W40-4Y-0065-ET Price Picture
not
available
R29-26-22-15-N20A <>
  W50
Input = 20 teeth
3rd mainshaft = 25 teeth
2nd mainshaft = 31 teeth
1st mainshaft = 34 teeth
20 splines
Snap ring
    GEAR, Counter (Cluster) 33421-20050
  Last updated:  12/05/2025
Master Index


Related items:

33101-20012    CASE, Transmission
33367-14010    RING, Synchronizer
33362-31011    HUB, Clutch
33364-20013    SLEEVE, Synchronizer
33103-20090    EXTENSION HOUSING
97183-06205    BEARING OR ROLLER, Counter Gear Front
33036-35010    GEAR, 5th Speed
33393-30020    HUB, Clutch
33364-20011    SLEEVE, Synchronizer
83500567    RING, Synchronizer
31111-20110    HOUSING, Clutch
33033-20030    GEAR, 2nd Speed
90363-32060    BEARING, Output Shaft Center
33404-35010    SLEEVE, Speedometer Shaft
33363-20030    SLEEVE, Synchronizer Hub
33361-31011    HUB, Clutch
33301-30041    SHAFT, Input
33393-20010    HUB, Clutch
33368-20012    RING, Synchronizer
33033-35030    GEAR, 2nd Speed
33321-20080    MAINSHAFT
33402-31010    GEAR, Reverse Idler
33032-31010    GEAR, 1st Speed
33030-35160    TRANSMISSION ASSEMBLY
33131-31010    RETAINER, Front Bearing
89-83-500-566    RING, Synchronizer
33482-39135    GEAR, Speedometer Driven
33361-20030    HUB, Synchronizer
33242-20041    SHAFT, 1st & 2nd Shift Fork
33355-31010    RACE, 1st Gear Bearing Inner
33363-20020    SLEEVE, Synchronizer
90363-25006    BEARING OR ROLLER, Counter Gear Front
33245-35030    SHAFT, Reverse Shift Fork
90365-25002    BEARING OR ROLLER, Counter Gear Front

Known to fit Toyota applications.
