  Page number:  JT-R01-130

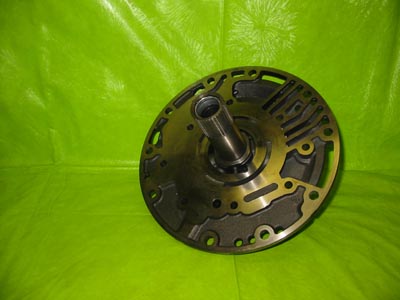

STATOR SUPPORT
47285 parts in stock comprising 18192 unique part numbers from 55748 numbers listed. (10/03/2025)
Style Color
Code		 OA/Thick OD/Deep ID/Wide Our Part Number Price Picture
Tooth Counts ID Marks
Year Miscellaneous Info
Years   Part Info Number
Call 877-771-3372 for current price & availability ( 8am - 8pm Pacific Time )
No sensor

Flats

20 splines 		VOL 7" 3-39/64" XL   JT-R01-13-0044-A1 Price Picture
not
available
N34A
  Mazda, Nissan
No sensor hole
Bore = 60/64"
3-39/64" to lip
Known to fit rotor with flats, 20 input splines
    COVER, Pump 31350-41X16
No sensor

Tits

18 splines 		LOE 7"     JT-R01-13-00CW-GV Price Picture
not
available
N34A
88-90 Nissan
No sensor hole
Bore = 60/64"
3-35/67" to lip
Known to fit rotor with tits, 18 input splines
    COVER, Oil Pump 31350-41X06
No sensor

Tits

18 splines 		LYG 7"     JT-R01-13-00CX-JX Price Picture
not
available
N34A
  Nissan
No sensor hole
Bore = 60/64"
3-35/67" to lip
Known to fit rotor with tits, 18 input splines
    COVER, Oil Pump 31350-41X11
No sensor

Tits

20 splines 		BKE 7" 3-37/64" XL   JT-R01-13-0030-AQ Price Picture
not
available
N34A
  Mazda, Nissan
No sensor hole
Bore = 60/64"
3-37/67" to lip
Known to fit rotor with tits, 20 input splines
    COVER, Front Pump 31350-41X00
No sensor

Tits

20 splines 		LRR 7" 3-35/64" XL   JT-R01-13-0062-KY Price Picture
not
available
N34A <>
  Mazda, Nissan
No sensor hole
Bore = 60/64"
3-35/67" to lip
Known to fit rotor with tits, 20 input splines
    COVER, Front Pump 31350-41X09
Sensor

Flats

3-40/64" shaft 		EGK 7"   3-40/64" XL JT-R01-13-0043-KY Price Picture
not
available
N34A T-15-2X15
  Infiniti QX4
Sensor hole
60/64" bore
3-40/64" to lip
Use with rotor with flats
    COVER, Pump 31350-41X19
Sensor

Flats

3-41/64" shaft 		EOO 7" 3-41/64" XL   JT-R01-13-0020-9P Price
Enlarge
N34A D
  Mazda, Nissan
Sensor hole
3-41/67" to lip
Use with rotor with flats
Sensor

Tits

3-34/64" shaft 		GRG 7" 3-34/64" XL   JT-R01-13-0052-JX Price Picture
not
available
N34A D
  Mazda, Nissan
Sensor hole
3-34/64" to lip
Use with tit type rotor
    COVER, Front Pump 31350-41X13
Sensor

Tits

3-37/64" shaft 		BGG 7" 3-37/64" XL 3-37/64" XL JT-R01-13-001X-7A Price
Enlarge
N34A D
  Mazda, Nissan
Sensor hole
3-37/64" to lip
Use with tit type rotor
    COVER, Front Pump 31350-41X13
Subaru

2 bushings 		EGL       JT-R01-13-0022-FU Price Picture
not
available
  <>
  Subaru
2 bushings
    COVER, Oil Pump 31327AA000
  Last updated:  10/03/2025
Master Index


Related items:

31450-41X01    GEAR ASSEMBLY, Internal
38100AA610    RING GEAR & PINION
31533AA010    DRUM E, Forward Clutch
31409AA050    SHAFT, Input
31638AA000    PISTON
31330-41X09    EXTENSION HOUSING
31450-41X02    GEAR ASSEMBLY, Internal
31611AA080    RETAINER, Servo Piston
31935-51X10    SENSOR ASSY, Revolution
31310-41X20    CASE, Transmission
31411-41X01    SHAFT, Input
31436AA121    CARRIER, Planetary
310C0-43X73    TRANSMISSION ASSEMBLY
BV11-19-5D1B
38438AA040    CASE, Differential, Right
31000AB860    TRANSMISSION ASSEMBLY
31695-48X00    PISTON, Overdrive Servo
31639AA000    RETAINER, Servo Piston
31939AA040    SOLENOID ASSEMBLY, Control
31331AA053    CASE E, Extension
31440-41X09    CARRIER ASSY, Rear Planet
31000AD600    TRANSMISSION ASSEMBLY
310C0-4EX67    TRANSMISSION ASSEMBLY
31416AA010    RACE, Outer
31713-41X04    BODY, Lower Control Valve
31691-41X03
31615-41X00    PISTON, Servo
31615-41X05    PISTON, Servo
31469-41X03    GEAR, Sun (Rear)
38439AA000    CASE, Differential, Left
31541-41X02    DRUM, High Clutch
38100AA250    RING GEAR & PINION
BV11-19-391    RETAINER, Servo
31020-49X11    TRANSMISSION ASSEMBLY
BV11-19-5D2    PISTON, High Clutch
31420-41X08    CARRIER, Front Planetary
31715-48X05    PLATE, Separator
31459AA050    GEAR ASSEMBLY, Sun
31705-48X20    VALVE BODY, Main Control
31450AA030    GEAR, Reduction Drive
31705AA123    VALVE BODY, Main Control
31436AA010    CARRIER, Planetary
32714AA360    GEAR, Speedometer Driven
BV11-19-336    RACE, Inner
31458AA071    SHAFT, Reduction Gear
31705-44X82    VALVE BODY, Main Control
31705-43X13    VALVE BODY, Main Control
31310-48X02    CASE, Transmission

Known to fit Nissan, Subaru applications.
