  Page number:  TF-7ML-990
ADAPTER HOUSING, 4x4
Call 877-771-3372 for current price & availability ( 8am - 8pm Pacific Time )
Style Color
Code		 OA/Thick OD/Deep ID/Wide Our Part Number Price Picture
Tooth Counts ID Marks
Year Miscellaneous Info
Years   Part Info Number
Call 877-771-3372 for current price & availability ( 8am - 8pm Pacific Time )

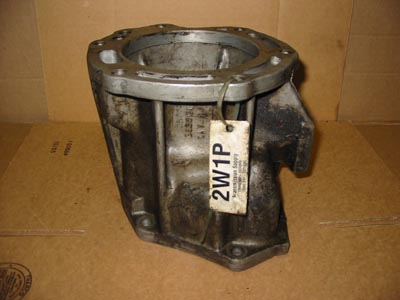

Aluminum

6-5/16" long

3836015 		KRL 6-5/16"     TF-7ML-99-006F-GY Price
Enlarge
  3836015
  Jeep
Aluminum
6x6 bolts
Mount = Bottom,
    EXTENSION HOUSING 8132503
Aluminum

6-9/16" long

3836029 		OYK 6-9/16"     TF-7ML-99-0012-GG Price Picture
not
available
  3836029
  Aluminum
6x6 bolts
No bosses
    EXTENSION HOUSING 8134761
J8134761
    EXTENSION HOUSING J8134761
Aluminum

6-13/16" long

3878570 		LLB 6-13/16"     TF-7ML-99-005P-HL Price Picture
not
available
  3878570
  IHC, AMC, Jeep
Aluminum
6x5 bolts
Mount = Bottom, 4 bolts
Aluminum

10-3/16" long

3836016 		GOB 10-3/16"     TF-7ML-99-005T-GV Price Picture
not
available
  3836016
  Aluminum
6x6 bolts
Mount = Bottom, 2 bored holes, 4" span
10-3/16" face to face
Threaded bosses = 2 driver side, 3 passenger side, 5 total
Known to fit A727, NP208, & 17-1/2" output shaft

WARNING: This casting number has been found with 3 threaded bosses
    EXTENSION HOUSING 3743285
Aluminum

10-3/16" long

3836016 		BLB 10-3/16"     TF-7ML-99-003Y-F4 Price
Enlarge
  3836016
78-90 Aluminum
6x6 bolts
Mount = Bottom, 2 bored holes, 4" span
10-3/16" face to face
Threaded bosses = None driver side, 3 passenger side, 3 total
Known to fit A727, NP208, & 17-1/2" output shaft

WARNING: This casting number has been found with 5 threaded bosses
    EXTENSION HOUSING 4120675
Aluminum

10-3/16" long

4130675 		LVY 10-3/16"     TF-7ML-99-0045-GR Price Picture
not
available
  4130675
  Aluminum
6x6 bolts
Mount = Bottom, 2 bored holes, 4" span
10-3/16" face to face
Threaded bosses = 2 driver side, 3 passenger side, 5 total
Known to fit A727, NP208, & 17-1/2" output shaft
    EXTENSION HOUSING 4130675
Iron

8-3/8" long 		YYB 8-5/16"     TF-7ML-99-003X-C2 Price
Enlarge
  3743284
  Cast iron
6x7 bolts
Fits 16-1/4" output shaft
Known to fit A727, NP203
    EXTENSION HOUSING 3743285
