  Page number:  TF-7ML-710

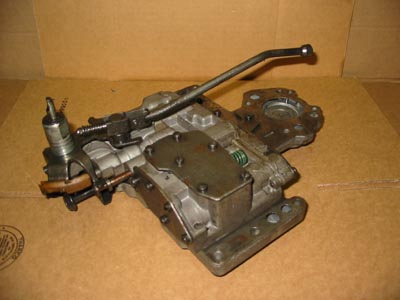

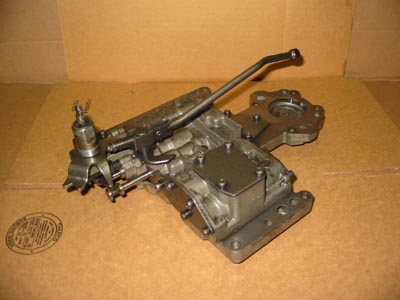

VALVE BODY ASSEMBLY, Main
47487 parts in stock comprising 18299 unique part numbers from 55937 numbers listed. (11/14/2025)
Style Color
Code		 OA/Thick OD/Deep ID/Wide Our Part Number Price Picture
Tooth Counts ID Marks
Year Miscellaneous Info
Years   Part Info Number
Call 877-771-3372 for current price & availability ( 8am - 8pm Pacific Time )
          TF-7ML-71-002U-F7 Price Picture
not
available

63-64 Floor shift
          TF-7ML-71-002W-8C Price Picture
not
available

71 6 bolt plate
  BRR       TF-7ML-71-002Y-EH Price Picture
not
available

74-80 Slant6
Nolu
    VALVE BODY, Main Control 4130715
  YOE       TF-7ML-71-025M-FX Price Picture
not
available

  V8
Nolu
    VALVE BODY, Main Control 8128987
  LBY       TF-7ML-71-0030-ET Price Picture
not
available

78 V8
NOLU
400 & 440
    VALVE BODY, Main Control 4186100
  GER       TF-7ML-71-0031-GV Price Picture
not
available

78-80 V8 LU
    VALVE BODY, Main Control 4130712
4202216
  VKE       TF-7ML-71-0032-JX Price Picture
not
available

79 Slant6
LU
    VALVE BODY, Main Control 4130714
4202216
  YLK       TF-7ML-71-0034-C2 Price Picture
not
available

80 V8
LU
    VALVE BODY, Main Control 4202216
  RRV       TF-7ML-71-0035-F4 Price Picture
not
available

81-85 Slant6
LU
    VALVE BODY, Main Control 4202632
  EYL       TF-7ML-71-0036-H6 Price Picture
not
available

81-85 Slant6
NOLU
    VALVE BODY, Main Control 4202631
2204575 top

2205182 bottom 		K392       TF-7ML-71-000N-6P Price Picture
not
available
  2204575 {Top}
2205182 {Bottom}
62-63 Non-lockup
Cable
No throttle body
1 steel rooster comb lobe
2464549 top

2400340 bottom

1 prong 		GEV       TF-7ML-71-00AL-A4 Price Picture
not
available
  2464549 {Top}
2400340 {Bottom}
  Non-lockup
Cable
No throttle body
1 steel rooster comb lobe
Linkage bore = 20/64", 40/64"

We inspect for broken worm tracks.
We do not reassemble before shipping.
2464549 top

2400340 bottom

2 prongs 		VVOL       TF-7ML-71-00VW-KK Price Picture
not
available
  2464549 {Top}
2400340 {Bottom}
  Non-lockup
Cable
No throttle body
2 steel rooster comb lobes
Linkage bore = 20/64", 40/64"
2466885 top

2466886 bottom 		EOR       TF-7ML-71-01GT-JX Price Picture
not
available
  2466885 {Top}
<> {Cheese Plate}
2466886 {Bottom}
  Non-lockup
No throttle body
2-prong rooster comb
2801856 top

2466886 bottom 		X603       TF-7ML-71-016E-GC Price Picture
not
available
  2801856 {Top}
2466886 {Bottom}
  Non-lockup
No throttle body
4-bolt plate
2 steel rooster comb lobes

We inspect for broken worm tracks.
We do not reassemble before shipping.
2801856 top

2801295 bottom 		X603       TF-7ML-71-003H-HE Price
Enlarge
  2801856 {Top}
2801295 {Bottom}
66-68 Non-lockup
No throttle body
2 steel rooster comb lobes
Linkage bore = 32/64", 41/64"
We inspect for broken worm tracks.
We do not reassemble before shipping.
2892348 top

2466886 bottom 		LKRG       TF-7ML-71-01F1-KK Price Picture
not
available
  2892348 {Top}
2466886 {Bottom}
  Non-lockup
No throttle body
4-bolt plate
2-prong rooster comb
2892348 top

2466886 bottom

<> plate 		BKL       TF-7ML-71-01WF-FJ Price Picture
not
available
  2892348 {Top}
2466886 {Bottom}
  Non-lockup
No throttle body
Plastic rooster comb
2892348 top

2801295 bottom 		REL       TF-7ML-71-002V-H9 Price
Enlarge
  2801295 {Top}
2892358 {Bottom}
69-70 Non-lockup
No throttle body
Plastic cam
2892348 top

2801295 bottom 		X603       TF-7ML-71-00M1-FQ Price Picture
not
available
  2892348 {Top}
2801295 {Bottom}
  Non lockup
No throttle body
4-bolt plate
Plastic cam
3410925 top

3410381 bottom 		        TF-7ML-71-01N6-K5 Price Picture
not
available
  3410925 {Top}
3410381 {Bottom}
  Non-lockup
Throttle body
6 bolt plate
Plastic lever
3410925 top

3410381 bottom 		        TF-7ML-71-017J-7Q Price Picture
not
available
  3410925 {Top}
3410381 {Bottom}
  Non-lockup
No throttle body
6 bolt plate
Plastic lever
3410925 top

3410435 bottom 		        TF-7ML-71-017H-PL Price Picture
not
available
  3410925 {Top}
3410435 {Bottom}
  Non-lockup
Throttle body
6 bolt plate
Plastic lever
3681230 top

3410381 bottom 		        TF-7ML-71-017F-KG Price Picture
not
available
  3681230 {Top}
3410381 {Bottom}
  Non-lockup
No throttle body
6 bolt plate
Plastic lever
3681230 top

3410435 bottom 		        TF-7ML-71-017G-MJ Price Picture
not
available
  3681230 {Top}
3410435 {Bottom}
  Non-lockup
Throttle body
6 bolt plate
Plastic lever
3681230 top

3651518 bottom 		RKY       TF-7ML-71-017R-G8 Price Picture
not
available
  3681230 {Top}
3651518 {Bottom}
  Non lockup
Throttle body
Plastic cam
3681230 top

3681519 bottom 		        TF-7ML-71-017Q-E6 Price Picture
not
available
  3681230 {Top}
3681519 {Bottom}
  Non-lockup
Throttle body
Plastic lever
3681230 top

3681815 bottom 		X603, OB       TF-7ML-71-017P-A4 Price Picture
not
available
  3681230 {Top}
3681815 {Bottom}
  Non-lockup
Throttle body
Plastic lever
3681230 top

3743158 bottom 		OOG       TF-7ML-71-017N-60 Price Picture
not
available
  3681230 {Top}
3743158 {Bottom}
  Non-lockup
Throttle body
Plastic lever
3681230 top

3743159 bottom 		YKB       TF-7ML-71-01N5-H3 Price Picture
not
available
  3681230 {Top}
3743159 {Bottom}
  Non-lockup
Throttle body
Plastic lever
3743155 top

3743158 bottom 		        TF-7ML-71-015M-CV Price Picture
not
available
  3743155 {Top}
163 {Cheese Plate}
3743158 {Bottom}
  Non lockup
Throttle body
6 bolt plate
Plastic lever
3743155 top

3743159 bottom 		RKR       TF-7ML-71-015N-FX Price Picture
not
available
  3743155 {Top}
3743159 {Bottom}
  Non lockup
Throttle body
Plastic lever
3836648 top

4202528 bottom 		OBY       TF-7ML-71-01JV-G5 Price Picture
not
available
  3836648 {Top}
4202528 {Bottom}
86 Non-lockup
Throttle body
6 bolt plate
Plastic cam
4058177 top

4058525 bottom 		        TF-7ML-71-017L-CV Price Picture
not
available
  4058177 {Top}
4058525 {Bottom}
78-85 Non lockup
Throttle body
Plastic lever
No tube
V8
4130495 top

4058179 bottom 		BGG       TF-7ML-71-003C-G2 Price
Enlarge
  4130495 {Top}
4058179 {Bottom}
  Lockup tube
Throttle body
Plastic cam
Linkage bore = 32/64", 40/64"
4130495 top

4058179 bottom 		VEV       TF-7ML-71-01NA-EW Price Picture
not
available
  4130495 {Top}
4058179 {Bottom}
  No tube
Throttle body
Plastic cam
Linkage bore = 32/64", 40/64"
4130495 top

4202528 bottom

Lockup 		RGY       TF-7ML-71-01YY-KV Price Picture
not
available
  4130495 {Top}
4202528 {Bottom}
  Lockup tube
Throttle body
Plastic cam
Linkage bore = 32/64", 40/64"
4130495 top

4202528 bottom

Non-Lockup 		KOY       TF-7ML-71-017K-9T Price Picture
not
available
  4130495 {Top}
4202528 {Bottom}
  No lockup tube
Throttle body
Plastic cam
Linkage bore = 32/64", 40/64"
4446192 top

4202528 bottom 		KKV       TF-7ML-71-01JU-E3 Price Picture
not
available
  4446192 {Top}
4202528 {Bottom}
  Non-lockup
Throttle body
6 plate bolts
Plastic lever
No tube
4446192 top

4428437 bottom 		        TF-7ML-71-017M-FX Price Picture
not
available
  4446192 {Top}
4428437 {Bottom}
  Diesel
Non-lockup
Throttle body
Plastic cam
No tube
4617102 top

4617074 bottom 		ELL       TF-7ML-71-01YK-JX Price Picture
not
available
  4617102 {Top}
4617074 {Bottom}
  Non-lockup
Throttle body
Plastic lever
No tube
    VALVE BODY, Main Control 52117914
??????? top, 2801295 bottom X603       TF-7ML-71-0042-KY Price Picture
not
available
  ???? {Top}
2801295 {Bottom}
  Non-lockup
No throttle body
4-bolt plate
2-prong rooster comb
  Last updated:  11/14/2025
Master Index


Related items:

3640802
J3238144    GEAR, Speedometer Driven
3212730    GEAR, Speedometer Driven
474545C1    CARRIER, Planetary
458095C1    DRUM, Rear Clutch
3743188    INPUT SHAFT
4617779    GEAR, Annulus, Rear
3743621    SPRING, Rear Clutch Piston
4471445    SHAFT, Converter Reaction
4505224    RETAINER, Rear Clutch Piston
2538933    GEAR, Speedometer Driven
3212734    GEAR, Speedometer Driven
8132482    HOUSING, Pump
3640810    TRANSMISSION ASSEMBLY
3736145    TRANSMISSION SUPPLY
52067642    GEAR, Speedometer Driven
4728662    OIL PUMP ASSEMBLY
474544C2    SHAFT, Output
3736224    CASE, Transmission
89-53-005-019
4796467    OIL PUMP ASSEMBLY
5234422    SENSOR, Distance
53008538
J3212734    GEAR, Speedometer Driven
4329438    TRANSMISSION ASSEMBLY
4039536    TRANSMISSION ASSEMBLY
4028273    SHAFT, Coverter Reaction
4028299    RETAINER, Rear Clutch
J8125968
4028193    EXTENSION HOUSING
458086C2    HOUSING, Pump
3743622    RETAINER, Rear Clutch
4086384    CASE, Transmission
4058223
4428488    CASE, Transmission
4329853    BAND, Kickdown
3743189    INPUT SHAFT
3640825
423981C91    TRANSMISSION ASSEMBLY
8133388    SHAFT, Input
4329817    GEAR, Speedometer Driven

Known to fit Chrysler, AMC applications.
