  Page number:  TF-7ML-5l0

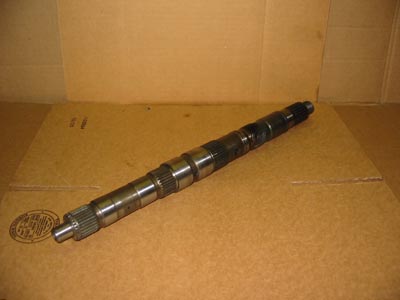

OUTPUT SHAFT
Call 877-771-3372 for current price & availability
Style Color
Code
OA/Thick OD/Deep ID/Wide Our Part Number Price Picture
Tooth Counts ID Marks
Year Miscellaneous Info
Years   Part Info Number
Call 877-771-3372 for current price & availability
? threads

40/64" tip

Type 1
OYL       TF-7ML-5L-002U-NY Price Picture
not
available
PN28A-31A-24A- ??
66-75 ?? threads
40/64" tip
62-75 splines, Type 1

    OUTPUT SHAFT 2892655
No threads

22/64" tip

Type 2

13" long
K365 13"     TF-7ML-5L-0052-7Q Price Picture
not
available
PN28A-31A-34A-23A
  Jeep 4x4
No threads
22/64" tip
76-93 splines, Type 2

No threads

40/64" tip

Type 1 26-7/8" long

Pin hole
VVE 26-7/8"     TF-7ML-5L-002Q-EP Price Picture
not
available
PN28A-31A-34A-L8-N30A >E<
  No threads
40/64" tip
62-75 splines, Type 1
Pump gear pin hole
Tail bearing ahead of speedo
ID 4" from end of shaft

No threads

40/64" tip

Type 1

16-1/4" long
W301.BBL 16-1/4"     TF-7ML-5L-002Y-M7 Price Picture
not
available
PN28A-31A-34A-
74-75 Married 4x4
No threads
40/64" tip
62-75 splines, Type 1

    OUTPUT SHAFT 3743287
No threads

40/64" tip

Type 1

26-7/8" long

No pin hole
W397 26-7/8"     TF-7ML-5L-009M-CN Price Picture
not
available
PN28A-31A-34A- >E<
66-75 No threads
40/64" tip
62-75 splines, Type 1
No pump gear pin hole

No threads

40/64" tip

Type 2

13-1/2" long
YYE.KOE       TF-7ML-5L-0036-FX Price Picture
not
available
PN28A-31A-34A-
  Married 4x4
No threads
40/64" tip
76-93 splines, Type 2

      8132491
    SHAFT, Output 8132491
Threads

22/64" tip

Type 2

16-3/4" long
LKR 16-3/4"     TF-7ML-5L-009L-LL Price Picture
not
available
PN28A-31A-34A-23AR <>
90-91 Diesel RWD
7/8" male threads
22/64" tip
76-93 splines, Type 2
Bearing stop is 3" in

    OUTPUT SHAFT 4746946
Threads

40/64" tip

Type 1

16-3/4" long
BER 16-3/4"     TF-7ML-5L-0033-7Q Price Picture
not
available
PN28A-31A-34A-L13-N23AR
69-75 3/4" male threads
40/64" tip
62-75 splines, Type 1
Bearing stop is 2-7/8" in

    SHAFT, Output 432848C1
Threads

40/64" tip

Type 1

20-7/8" long

No pin hole
W397NOLB 20-7/8"     TF-7ML-5L-002V-F1 Price Picture
not
available
PN28A-31A-34A-23AR <>
66-75 Van, Motor home
3/4" male threads
40/64" tip
62-75 splines, Type 1
Governor splines 8-1/4" back
No pump pin hole

    OUTPUT SHAFT 2892333
Threads

40/64" tip

Type 1

20-7/8" long

Pin hole
LO 20-7/8"     TF-7ML-5L-002R-GR Price Picture
not
available
PN28A-31A-34A-L8-N23AR <>
65 Motor home
3/4" male threads
40/64" tip
62-75 splines, Type 1
Governor splines 8-3/4" back
Pump pin hole

Threads

40/64" tip

Type 1

26-7/8" long

Pin hole
W397 26-7/8"     TF-7ML-5L-002P-MM Price Picture
not
available
PN28A-31A-34A-L8-23AR <>
62-64 3/4" male threads
40/64" tip
62-75 splines, Type 1
Governor splines 8-3/4" back
Pump gear pin hole

Threads

40/64" tip

Type 1

27" long

Pin hole
EYK 27"     TF-7ML-5L-002T-LW Price Picture
not
available
PN28A-31A-34A-L8-23AR <>
65 Imperial
3/4" male threads
40/64" tip
62-75 splines, Type 1
Governor splines 8-3/4" back
Pump gear pin hole

Threads

40/64" tip

Type 2

17" long
VYO 17"     TF-7ML-5L-002N-HH Price Picture
not
available
PN28A-31A-34A-23AR
  IHC
3/4" male threads
40/64" tip
76-93 splines, Type 2
Seal surface
Bearing stop is 3-7/8" in

Threads

40/64" tip

Type 2

17-1/4" long
YEY 17-1/4"     TF-7ML-5L-0035-CV Price
PN28A-31A-34A-23AR <>
87-89 Diesel RWD
7/8" male threads
40/64" pilot
76-93 splines, Type 2
Bearing stop is 3" in

    OUTPUT SHAFT 4431550
4504011

Threads

40/64" tip

Type 2

20-7/8" long

No pin hole
YLO.NV 20-7/8"     TF-7ML-5L-0032-5N Price Picture
not
available
PN28A-31A-34A-23AR <E>
76- Van, Motor home
3/4" male threads
40/64" tip
76-93 splines, Type 2
Governor splines 8-1/4" back
ID 4" from end of shaft
