| PUMP ASSEMBLY, Front | |||||||
|---|---|---|---|---|---|---|---|
| 47285 parts in stock comprising 18192 unique part numbers from 55753 numbers listed. (10/05/2025) | |||||||
| Style | Color Code |
OA/Thick | OD/Deep | ID/Wide | Our Part Number | Price | Picture |
| Tooth Counts | ID Marks | ||||||
| Year | Miscellaneous Info | ||||||
| Years | Part Info | Number | |||||
| Call 877-771-3372 for current price & availability ( 8am - 8pm Pacific Time ) | |||||||
|
47/64" bore 4-63/64" long |
OGL | 4-15/16" | BW-T6P-14-00FW-A1 | Price |
Picture not available |
||
|
35EA-60 {Pump Body} 04-35-007-902F {Stator Support} |
|||||||
|
Shaft length = 3-7/8" Bushing = 47/64" (0.732") bore Gears = ?angle teeth, " thick Known to fit input with 23 splines |
|||||||
| PUMP, Front | 24-31-1-209-935 | ||||||
|
47/64" bore 5-42/64" long |
GGE.K413 | 5-42/64" | 47/64" | BW-T6P-14-009U-CG | Price |
Picture not available |
|
|
35EA-60, AS14 {Pump Body} 04-65-007-902F {Stator Support} |
|||||||
|
Shaft length = 4-33/64" Bushing = 47/64" (0.732") bore Gears = 23x29 angle teeth, 48/64" thick Known to fit input with 23 splines |
|||||||
| PUMP, Front | RTC38 | ||||||
| 54/64" bore | LVR | 5-7/8" | BW-T6P-14-004E-M7 | Price |

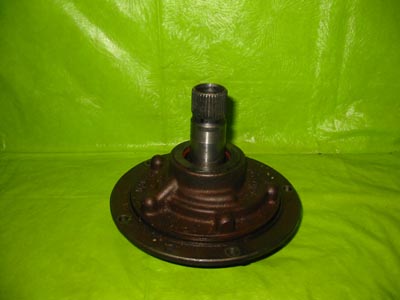

 Enlarge |
||
|
35EA-60A {Pump Body} 04-35-007-908L {Stator Support} |
|||||||
|
Shaft length = 4-5/8" Bushing = 54/64" (0.846") bore Gears = 23x31 straight teeth, 48/64" thick Known to fit input with 26 splines |
|||||||
| PUMP, Front | RTC38 | ||||||
|
Related items: 24-21-1-205-066 KIT, Speedometer Drive EAC1320 HOUSING, Converter 24-23-1-203-315 PISTON 24-10-1-203-516 EXTENSION HOUSING RTC271 SHAFT, Sun Gear 24-24-1-207-409 SHAFT, Manual RTC60 PISTON, Rear Clutch 24-31-1-203-533 REGULATOR 24-22-1-203-287 CYLINDER AEU2999 ACTUATOR RTC88 SHAFT, Manual 12576 SERVO, Rear RTC68 SUPPORT, Center AEU004120 SHAFT, Sun Gear 24-24-1-203-393 SHAFT, Connecting RTC187 GOVERNOR ASSEMBLY RTC86 SHAFT, Manual 24-42-1-203-278 WASHER, Thrust 11894 SPRING, Front Clutch 24-34-1-203-228 COVER 24-22-1-204-247 PARKING PAWL 11518 BEARING, Thrust 24-22-1-207-391 GEAR, Sun 24-22-1-203-366 SHAFT, Output 24-23-1-204-195 KIT, Cylinder 24-23-1-204-294 KIT, Clutch Plate (Faced) JS634 SERVO, Front 24-34-1-203-223 SPRING, Servo Piston 24-23-1-207-191 KIT, Clutch Plate RTC54 CYLINDER, Front Clutch AEU001334 INPUT SHAFT AEU001272 GOVERNOR ASSEMBLY 24-31-1-205-397 VALVE BODY, Main Control 24-24-1-203-378 BAND, Front Servo RTC57 HUB, Clutch |
| Known to fit BMW, Jaguar applications. |
