  Page number:  FD-LFR-520

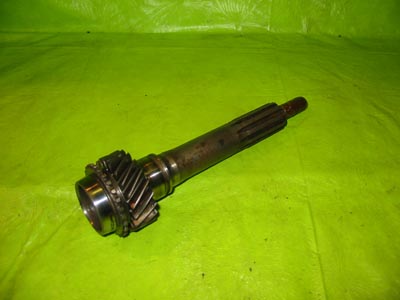

INPUT SHAFT
47285 parts in stock comprising 18192 unique part numbers from 55753 numbers listed. (10/05/2025)
Style Color
Code		 OA/Thick OD/Deep ID/Wide Our Part Number Price Picture
Tooth Counts ID Marks
Year Miscellaneous Info
Years   Part Info Number
Call 877-771-3372 for current price & availability ( 8am - 8pm Pacific Time )
20 teeth

9-1/2" long

Ford 		BBG 9-1/2"     FD-LFR-52-016K-8R Price Picture
not
available
PN10-L20-N27A <B>
  Cluster = 37 teeth
27 points
Tip = "
Shank = 51/64"
20 teeth

9-1/2" long

Ford

0.67" tip 		RVE 9-1/2"     FD-LFR-52-0022-HW Price Picture
not
available
PN10-L20-N27A <>
81-82 Cluster = 37 teeth
27 points
Tip = 0.67"
Shank = 51/64"
      T1103-16G
    GEAR, Main Drive E1ZZ-7017-B
20 teeth

9-1/2" long

Ford

38/64" tip 		VBV 9-1/2"     FD-LFR-52-0021-FU Price Picture
not
available
PN10-L20-N27A <>
79-81 Cluster = 37 teeth
27 points
Tip = 38/64" x 1-14/64"
Shank = 51/64"
      T1103-16F
    GEAR, Main Drive D9ZZ-7017-B
20 teeth

10-3/4" long

Ford 		ELB 10-3/4" 2-26/64"   FD-LFR-52-001Y-CG Price Picture
not
available
PN10-L20-N27A <K>
75-78 Cluster = 35 teeth
Tip = 38/64" x 1-49/64"
Splines = 1-3/64"
Shank = 51/64"
Seal journal = 1-8/64"
Bearing journal =
Offset = 2-20/64"
27 short flush points
      T1103-16J
    GEAR, Main Drive D5ZZ-7017-B
20 teeth

9-3/8" long

AMC, Jeep 		BVE 9-3/8"     FD-LFR-52-0007-G5 Price
Enlarge
PN10A-L20-N27A <>
80-81 Cluster = 37 teeth
27 points
Tip = "
Shank = 1-3/64"
    GEAR, Main Drive 8132596
      T1103-16
22 teeth

" long

AMC, Jeep 		BVV       FD-LFR-52-0004-KY Price Picture
not
available
PN10A-L22-N27A
  Cluster = 35 teeth
    Input Shaft 8127388
      13-40-085-001
      T1103-16H
22 teeth

9-1/2" long

Ford 		KGV.S128 9-1/2" 2-39/64"   FD-LFR-52-001V-G8 Price Picture
not
available
PN10A-L22-N27A <>
74-78 Cluster = 35 teeth
27 points
Tip = 38/64" x 1-21/64"
Splines = 1-4/64"
Shank = 51/64"
Seal journal = 1-8/64"
Bearing journal = 1-24/64"
Offset = 2-20/64"
Syncro teeth = 27 flush points
      T1103-16B
    GEAR, Main Drive D4ZZ-7017-A
22 teeth

9-1/2" long

Ford 		RYE 9-1/2"     FD-LFR-52-001X-9E Price Picture
not
available
PN10-L22-N27A <>
75-80 Cluster = 35 teeth
27 points
Tip = 1-3/4" long
1-1/16" shank, Fat
      T1103-16A
    GEAR, Main Drive D5ZZ-7017-A
22 teeth

9-3/8" long

AMC, Jeep 		  9-3/8"     FD-LFR-52-0008-J7 Price Picture
not
available
PN10A-L22-N27A <B>
80 Cluster = 35 teeth
27 points
Tip = "
1-1/16" shank
    Input Shaft 8132597
      13-40-085-003
      T1103-16A
22 teeth

10-3/4" long

Ford 		GEB 10-3/4"     FD-LFR-52-001W-7A Price Picture
not
available
PN10-L22-N27A <>
74-78 Cluster = 35 teeth
27 points
Tip =
shank,
      TR1103-16C
    GEAR, Main Drive D4ZZ-7017-B
25 teeth

10-13/32" long

Ford 		EKO 10-13/32" 2-63/64"   FD-LFR-52-0020-CR Price Picture
not
available
PN10-L25-N27A
76-78 Cluster = 30 teeth
27 short points
Tip = 43/64" x 1-24/64"
Splines = 1-4/64"
Shank = 1-5/64", Fat
Seal journal = 1-8/64"
Bearing journal =
Offset = 2-21/64"
      T1103-16E
    GEAR, Main Drive D6ZZ-7017-A
  Last updated:  10/05/2025
Master Index


Related items:

E1ZZ-7005-A    CASE, Transmission
D5ZZ-7124-A    SYNCHRONIZER, 3rd & 4th
J8132675
D4ZZ-7109-A    SPRING, Synchronizer Hub
D9ZZ-7A039-A    EXTENSION HOUSING
D5ZZ-7113-A    GEAR, Counter (Cluster)
13-32-091-002
8133855    Mainshaft
8127376    Case
14050737    RING, Synchronizer Blocking
14053315    RING, Synchronizer Blocking
D4ZZ-7515-C    FORK, Clutch Release
3237243    Trans Assy, EOF()
E0ZZ-15520-A    SWITCH, Reverse Lamp
D4ZZ-7358-A    SHAFT & LEVER, Shifting
D4ZR-7000-AA    TRANSMISSION ASSEMBLY
D9ZZ-7358-A    SHAFT & LEVER, Shifting
T18-169    GEAR, Speedometer Drive
D6ZZ-7050-A    RETAINER, Front Bearing
D4ZZ-7050-A    RETAINER, Front Bearing
D6ZZ-7005-A    CASE, Transmission
D5ZZ-7061-A    MAINSHAFT
13-32-080-005
D4ZZ-7107-A    RING, Synchronizer Blocking
D6ZZ-7358-A    SHAFT & LEVER, Shifting
13-32-000-012    TRANSMISSION ASSEMBLY
D9ZR-7000-EA
13-40-080-002
D5ZZ-7230-C    SHIFT FORK, Shifting
8132595    EXTENSION HOUSING
T1103-21A
3236682    Trans Assy
D6ZZ-7061-A    MAINSHAFT
8134230    Gear, Reverse RS
3236678    TRANSMISSION ASSEMBLY
3237242    Trans Assy
8127403    RING, Synchronizer Blocking

Known to fit Borg Warner, Ford, AMC applications.
