  Page number:  GM-9L6-990
ADAPTER HOUSING, 4x4
47561 parts in stock comprising 18337 unique part numbers from 56101 numbers listed. (12/05/2025)
Style Color
Code		 OA/Thick OD/Deep ID/Wide Our Part Number Price Picture
Tooth Counts ID Marks
Year Miscellaneous Info
Years   Part Info Number
Call 877-771-3372 for current price & availability ( 8am - 8pm Pacific Time )
4x5 bolts

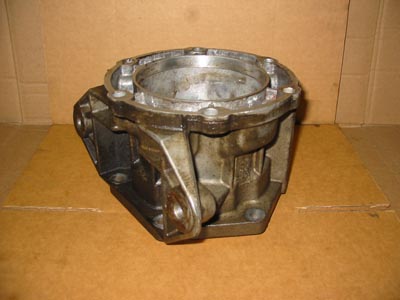

15654083 		GKE 2-22/64"     GM-9L6-99-0022-HH Price
Enlarge
  15654083
  Aluminum
4x5 bolts
Speedo = None
Sensor = None
Bosses = 2 blank side, 1 blank top, 3 total
Mount = Bottom, 10mm bolts, 7-1/2" bolt span
Known to fit 4L60-E, 700-R4, NP233C
[9L-1G-F4]
4x5 bolts

15681328 		ERE 2-23/64"   4-8/64" GM-9L6-99-0020-CC Price Picture
not
available
  15681328
  Aluminum
4x5 bolts
Speedo = None
Sensor = None
Bosses = 2 threaded side, 1 threaded top, 3 total
Mount = Bottom, 10mm bolts, 7-1/2" bolt span
Known to fit 4L60-E
4x5 bolts

15683749 		OOO 2-23/64"   4-8/64" GM-9L6-99-0021-FF Price
Enlarge
  15683749
  Aluminum
4x5 bolts
4-1/8" bore
Bosses = 2 blank side, 1 blank top, 3 total
12mm mount bolts
7-1/2" bolt centers
Known to fit 4L60-E, TH700-R4
[9L-1H-H6]
4x6 bolts

15629188 		KRL 3-1/2"   7-1/2" BC GM-9L6-99-001U-ET Price
Enlarge
  15629188
  Cast iron
4x6 bolts
Speedo = None
Sensor = None
Bosses = None
Mount = Bottom, 7-1/2" span, 10mm threads
Squat
    ADAPTER, Transfer Case 15629188
6x5 bolts

15028096 		BLG 4"     GM-9L6-99-0026-GR Price
Enlarge
  15028096
  Aluminum
6x5 bolts, CW
Mount = Bottom, " span, threads
Bosses = None
Known to fit NV236GM, 4L60-E
[9L-1F-C2]
6x5 bolts

15028097 		VEL 4"     GM-9L6-99-0028-LW Price
Enlarge
  15028097
  Aluminum
6x5 bolts, Mount = Bottom, 7-1/2" span, 10mm threads
Bosses = None
Known to fit 4L60-E, 226HD
[9L-2W-M7]
      15028097
6x5 bolts

15963696 		BKG 3-7/8"   7-1/2" BC GM-9L6-99-0044-EP Price
Enlarge
  15963696
  Aluminum
6x5 bolts, CW
Mount = Bottom, 7-1/2" span, 10mm threads
Bosses = None
Known to fit 233C, 4L60-E
6x5 bolts

15963697 		VKY 3-7/8"   7-1/2" BC GM-9L6-99-003P-FJ Price
Enlarge
  15963697
  Aluminum
6x5 bolts, CCW
Mount = Bottom, 7-1/2" span, 10mm threads
Bosses = 2 blank, 2 total
    ADAPTER, Transfer Case 15963697
    EXTENSION HOUSING 24203247
24210928
6x5 bolts

15963697 		GYL 3-7/8"   7-1/2" BC GM-9L6-99-003Q-HL Price
Enlarge
  15963697
  Aluminum
6x5 bolts, CCW
Mount = Bottom, 7-1/2" span, 10mm threads, 3-11/16" drop
Bosses = None
    ADAPTER, Transfer Case 15963697
    EXTENSION HOUSING 24203247
24210928
6x5 bolts

15979197 		EYY 4"     GM-9L6-99-0040-FF Price Picture
not
available
  15979197
  Aluminum
6x5 bolts, CW
Aluminum
6x5 bolts, CCW
Mount = Bottom, 7-1/2" span, 12mm threads
Bosses = None
Known to fit 4L60-E, BW4472
6x5 bolts

15996882 		YGR 3-7/8"     GM-9L6-99-0025-EP Price Picture
not
available
  15996882
  Aluminum
6x5 bolts,
Mount = Bottom, 7-1/2" span, 12mm threads
Bosses = None
Known to fit 136GM, 4L60-E
[9L-4P-JU]
    ADAPTER 15996882
6x5 bolts

24231140 		YKL       GM-9L6-99-0033-LL Price Picture
not
available
  24231140
04-12 Aluminum
6x5 bolts,
Mount = Bottom, " span, mm threads
Bosses =
6x5 bolts

24231141 		        GM-9L6-99-002Y-E3 Price Picture
not
available
  24231141
  Aluminum
6x5 bolts,
Mount = Bottom, " span, mm threads
Bosses =
6x6 bolts

15005474 		EKR 5-1/16"   4-57/64" GM-9L6-99-0023-KK Price Picture
not
available
  15005474
  Aluminum
6x6 bolts
Mount = Bottom, Centered, 7-1/2" span, 10mm threads
Bosses = None
Known to fit 241C, 4L60-E
[9L-5C-90]
    ADAPTER, Transfer Case 15005474
6x6 bolts

15724744-YDC 		YOK.YN 4-7/16"     GM-9L6-99-0027-JU Price Picture
not
available
  15724744-YDC
  Aluminum
6x6 bolts,
Mount = Bottom, 7-1/2" span, 10mm threads
Bosses = None
Known to fit 246GM, 4L60-E, 4L65-E
[9L1QM>9927JU]
6x6 bolts

15726252 		RYB 5-1/16"   4-57/64" GM-9L6-99-0024-MM Price
Enlarge
  15726252
  Aluminum
6x6 bolts,
Mount = Bottom, 7-1/2" span, mm threads
Bosses = None
Known to fit 4L60-E
[9L-1J-AA]
  Last updated:  12/05/2025
