  Page number:  TF-9NR-591

OUTPUT SHAFT, Rear
47487 parts in stock comprising 18299 unique part numbers from 55937 numbers listed. (11/14/2025)
Style	Color Code	OA/Thick	OD/Deep	ID/Wide	Our Part Number	Price	Picture
	Tooth Counts			ID Marks
	Year	Miscellaneous Info
	Years		Part Info		Number
Call 877-771-3372 for current price & availability ( 8am - 8pm Pacific Time )
No threads 12-3/8" long Round tip	YBB	12-3/8"			TF-9NR-59-00HH-GK	Price	Picture not available
	PN24A-28A-30A-N23A
		4x4 Dodge, Jeep, Mitsubishi Round tip
			OUTPUT SHAFT, Rear		4617320
No threads 12-3/8" long Slotted tip	YGG	12-3/8"			TF-9NR-59-00H7-JF	Price	Picture not available
	PN24A-28A-30A-N23A
	80-88	4x4 Dodge, Jeep, Mitsubishi Slotted tip
			SHAFT, Output		8132490
			SHAFT, Output		8132490
			SHAFT, Output		4130535
			SHAFT, Output		M4130535

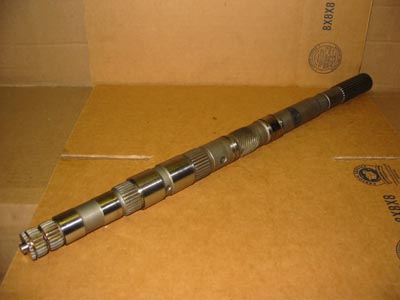

No threads 21-1/2" long 24 splines 2 slots	KKV	21-1/2"			TF-9NR-59-00EC-A4	Price	Enlarge
	PN24A-28A-30A-L13-N26A			<>
		Double slotted tip 24 planet splines 3 snap ring grooves 1 snap ring for bearing Slip yoke
			SHAFT, Output		4186093
No threads 21-1/2" long 24 splines 2 slots	EGR	21-1/2"			TF-9NR-59-00AM-8N	Price	Picture not available
	PN24A-28A-30A-L13-N26A			<>
	92-94	Double slotted tip 24 planet splines 3 snap ring grooves 1 snap ring for bearing 1-10/64" bearing journal Slip yoke
			OUTPUT SHAFT		4617318
No threads 21-1/2" long 24 splines Round 1 ring	KYB	21-1/2"			TF-9NR-59-00HF-AF	Price	Picture not available
	PN24A-28A-30A-L13-N26A			<>
		Round tip 24 planet splines Bearing journal = 1 snap ring, 1-11/64" diameter 5/64" groove Slip yoke
			SHAFT, Output		8127295
No threads 21-1/2" long 24 splines Round 2 rings	KKO	21-1/2"			TF-9NR-59-00F2-F1	Price	Picture not available
	PN24A-28A-30A-L13-N26A			<>
	68-72	Round tip 24 planet splines Bearing journal = 2 snap rings, 1-15/64" diameter Slip yoke
			SHAFT, Output		3410949
No threads 21-1/2" long 24 splines Slotted	LOE.NB	21-1/2"			TF-9NR-59-00EW-GG	Price	Picture not available
	PN24A-28A-30A-L13-N26A			<>
		Slotted tip 24 planet splines 1 snap ring for bearing Slip yoke
			SHAFT, Output		8130343
Threads 20-3/8" long Journal	EKO	20-3/8"			TF-9NR-59-00CJ-FJ	Price	Picture not available
	PN23A-28A-30A-L7-N23AR			<>
	60-64	Round tip 23 planet splines Male threads Bushing journal = 1-10/64" diameter
Threads 20-3/8" long Shoulder	LEL	20-3/8"			TF-9NR-59-00H4-M7	Price	Picture not available
	PN23A-28A-30A-L7-N23AR			<>
		Round tip 23 planet splines Male threads Bearing = 1" journal, 17-1/2" back shoulder Spline grooves = KK, 2 total
Threads 25-1/2" long Journal	VGB	25-1/2"			TF-9NR-59-00H3-K5	Price	Picture not available
	PN23A-28A-30A-L7-N23AR			<>
	60-64	Round tip 23 planet splines Male threads Bushing journal
Threads 27" long Shoulder	YLG				TF-9NR-59-00GH-FJ	Price	Picture not available
	PN23A-28A-30A-L			<>
	65	Round tip 23 planet splines Threaded Bearing shoulder ?" back ? snap ring grooves

  Last updated:  11/14/2025
Master Index

Related items: 2538927    GEAR, Speedometer Driven 52078723AE    LEVER, Throttle Valve 52078723AD    LEVER, Throttle Valve 3238771    TRANSMISSION ASSEMBLY 4431343    SUPPORT, Output Shaft 3780261    KIT, Governor Repair 4130194    INPUT SHAFT 8130336    SHAFT, Converter Reaction 4028600    SHAFT, Converter Reaction 8127833    CASE, Transmission 52067634    GEAR, Speedometer Driven 3219184     4130192    HOUSING, Front Oil Pump 4269948    HOUSING, Front Oil Pump 4446367     C7ZZ-7B488-A    SPRING, Direct Clutch 2538523    CARRIER ASSEMBLY, Front Planetary 8120932    PLATE, Rear Clutch Pressure 4269053    TRANSMISSION ASSEMBLY 52118017     M3681437     4740268    OIL PUMP ASSEMBLY 4130867    DRUM, Reverse 4028837    TRANSMISSION ASSEMBLY 4028464     4186879    RETAINER, Rear Clutch 3743518    SUPPORT, Governor M4269948    HOUSING ASSEMBLY, Pump 3743476    TRANSMISSION ASSEMBLY 4713854    CASE, Transmission 8132485    RETAINER, Rear Clutch & Piston 4446366     3410281    CASE, Transmission 89-83-501-948    EXTENSION HOUSING 4617176    PLATE, Pressure 4028878    TRANSMISSION ASSEMBLY 3743090    CLUTCH PISTON, Front M4130535    SHAFT, Output 4130973     3515804     4202574    TRANSMISSION ASSEMBLY 8124857    RETAINER, Rear Clutch & Piston 4269052    TRANSMISSION ASSEMBLY 8134676    HOUSING, Pump 2538407    SHAFT, Input 8133396    SUPPORT, Annulus (Front) 4058777    PISTON, Kickdown Servo

Known to fit Chrysler, AMC, Mitsubishi applications.
