  Page number:  TF-9NR-4n0
GEAR TRAIN
47487 parts in stock comprising 18299 unique part numbers from 55937 numbers listed. (11/14/2025)
Style Color
Code		 OA/Thick OD/Deep ID/Wide Our Part Number Price Picture
Tooth Counts ID Marks
Year Miscellaneous Info
Years   Part Info Number
Call 877-771-3372 for current price & availability ( 8am - 8pm Pacific Time )

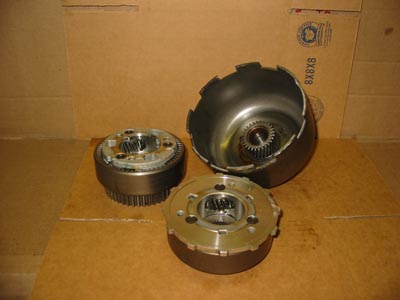

Aluminum

3+3 gears

23 splines 		K413       TF-9NR-4N-0010-NK Price
Enlarge

  Normal ratio
Front planet = Aluminum, 3 gears, Small neck, 23 splines
Sun gear = 28-28 teeth
Drive shell = 6" diameter
Front galaxy assembly = 62 teeth
Rear planet = Aluminum, 3 gears
Rear galaxy assembly = 62 teeth

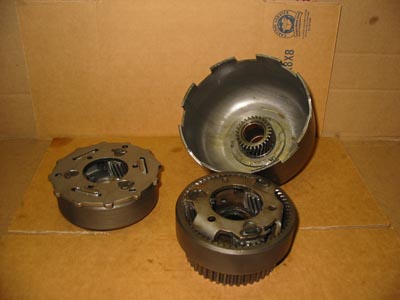

Aluminum

3+3 gears

24 splines 		K413       TF-9NR-4N-0011-QM Price
Enlarge

  Normal ratio
Front planet = Aluminum, 3 gears, Large neck, 24 splines
Sun gear = 28-28 teeth
Drive shell = 6" diameter
Front galaxy assembly = 62 teeth
Rear planet = Aluminum, 3 gears
Rear galaxy assembly = 62 teeth
Steel

28x28 teeth

6" shell

3+3 gears 		K413       TF-9NR-4N-0016-GY Price
Enlarge

  Normal ratio
Front planet = Steel, 3 gears
Sun gear = 28-28 teeth
Drive shell = 6" diameter
Front galaxy assembly = 62 teeth
Rear planet = Steel, 3 gears
Rear galaxy assembly = 62 teeth
  Last updated:  11/14/2025
